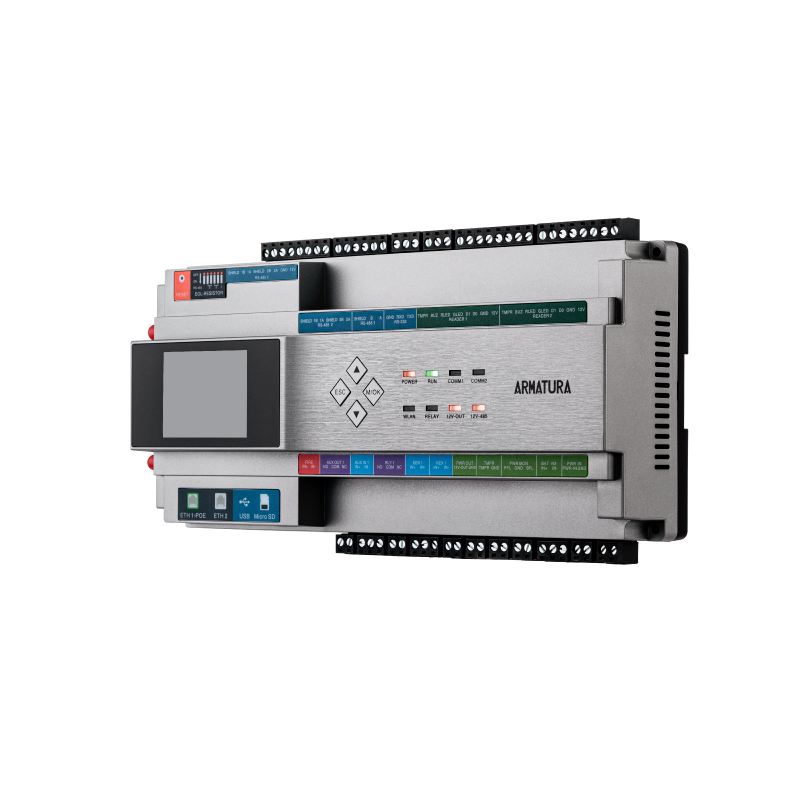

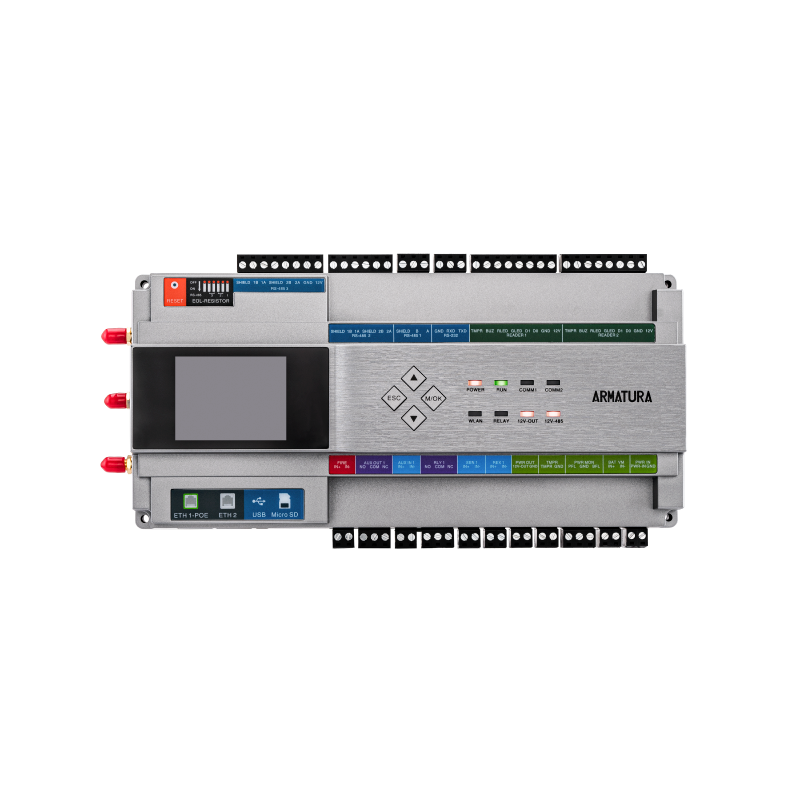

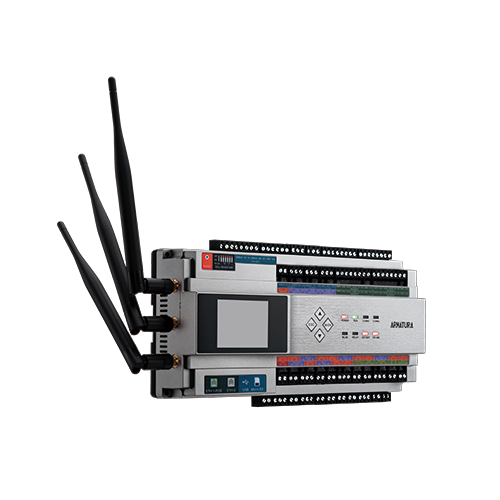

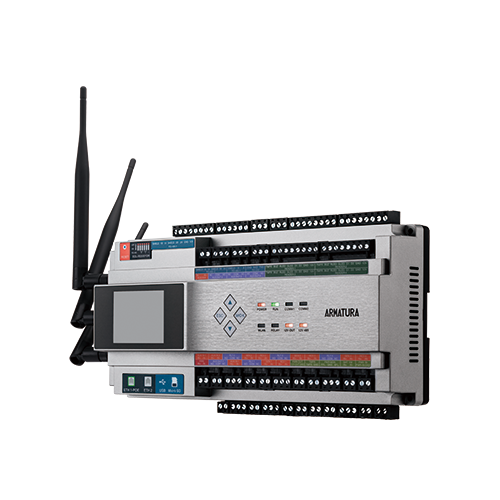

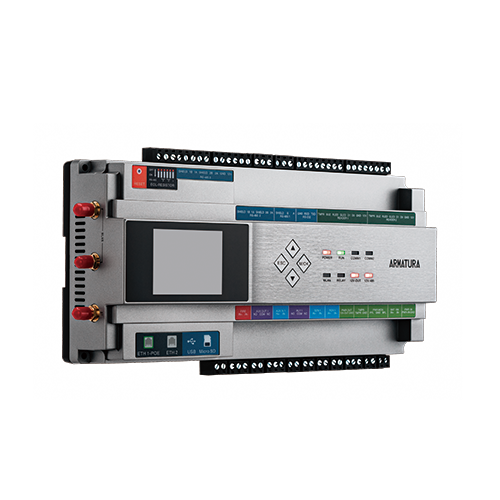

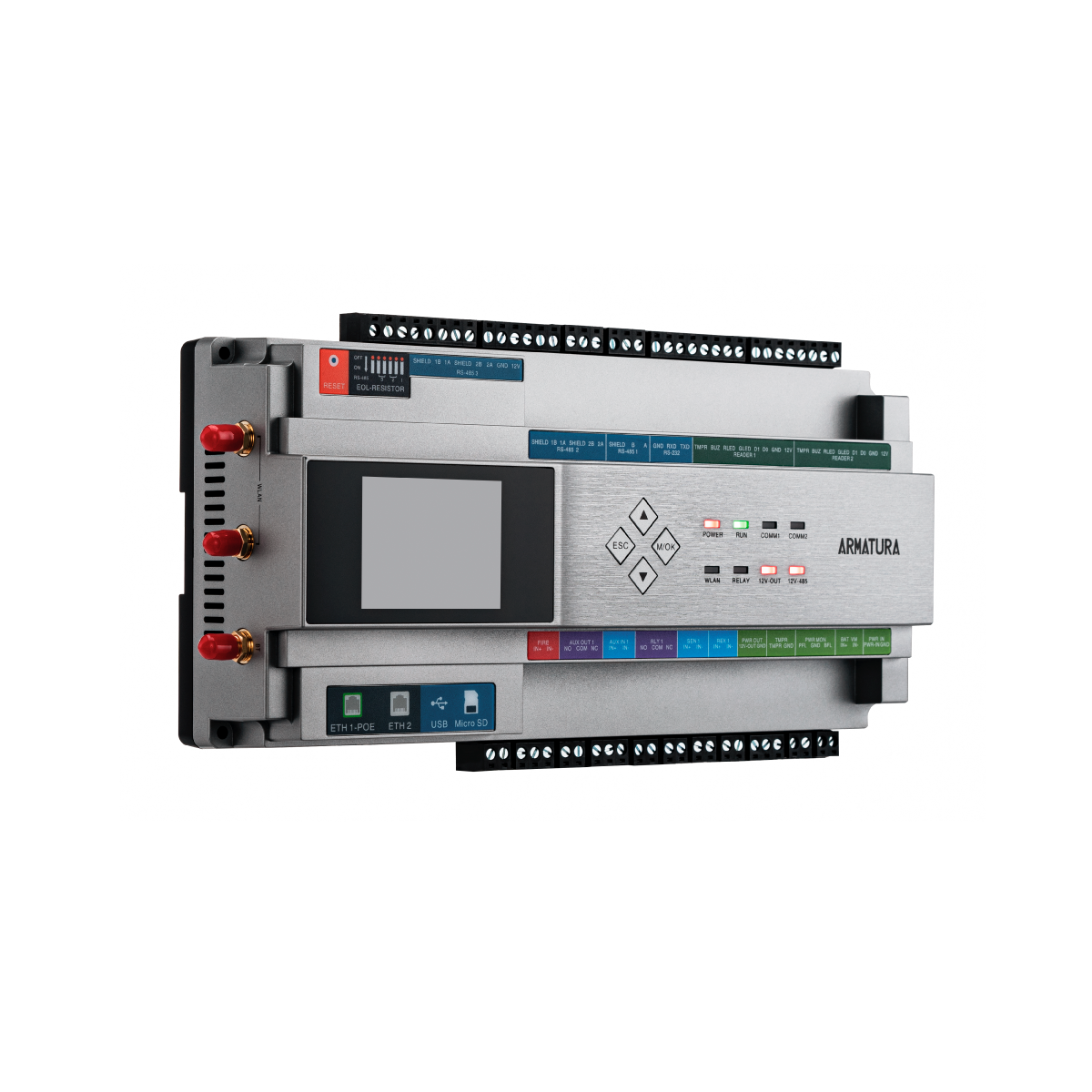

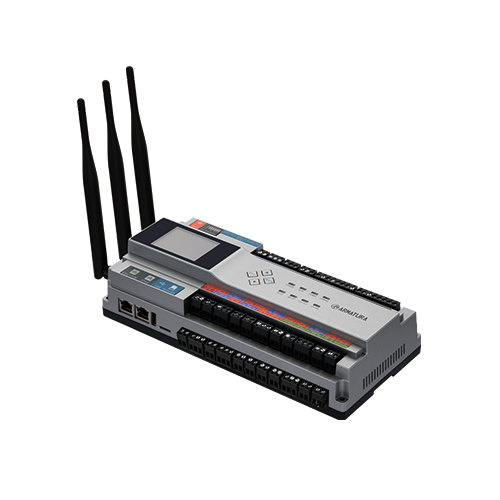

AHSC 1000 IP based core controller A&E specifications Version 1.2 _20240819
16.98MB
09 / 04 / 2024
Added Successfully
Primary Power | PoE 802.3at / 12-24 Vdc +/-20%, 550 mA maximum (reader current not included) |
Primary Host Communication | Ethernet: 100Base-TX
256bit AES* symmetric encryption for Controller to Server and Inter-Controller communications |
Secondary Host Communication | Bluetooth 5.2 |
Third Host Communication | Wi-Fi IEEE 802.11ac 5GHz, or 2.4GHz/5GHz IEEE 802.11n
256bit AES* symmetric encryption for Controller to Server and Inter-Controller communications |

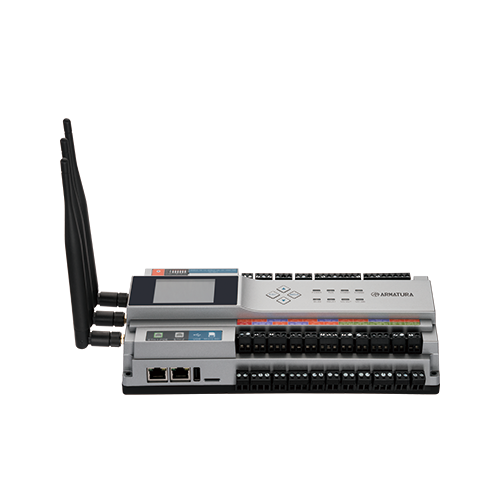

Ethernet network connection | Port 1: Ethernet: 100Base-TX
Port 2: Ethernet: 100Base-TX
(Configurable for Port Failover) |
RS-485 connection | Port 1: Armatura RS-485 / OSDP V2.2
Port 2: Armatura RS-485 / OSDP V2.2
Port 3: Armatura RS-485 / OSDP V2.2
(Configurable for Port Redundancy dedicated on port 2 & 3) |
Number of Ports | 2*TCP/IP (IPv4 & IPv6)
3*RS-485
2*Wiegand
1*RS-232 |
Inputs | 4 states supervision, resistor values (5% tolerance),
Normally open contact: use 1.2k, 2.2k. 4.7k or 10k
Normally closed contact: use 1.2k, 2.2k. 4.7k or 10k
Dedicated Panel Tamper IO Input*
Dedicated Microchip Control Fire Alarm IO Input & REX Input for catastrophic situation |
Outputs | 1 relay, 1* Form-C with dry contacts |
Normally Open Contact Rating | 5A @ 30Vdc resistive |
Normally Closed Contact Rating | 5A @ 30Vdc resistive |
On-Board Monitor | Dual Firmware Support, Access Control Mode (Standard) & Elevator Control Mode (Optional,
Require Extra License for Activation) |
On-Board Webserver | WebSever for System Configuration and Management
Dashboard for Controller Status Mointoring,
Device Firmware Swapping (Access Control Mode / Elevator Control Mode),
Device Connection Status Monitoring & Configuration, Performanace Status,
Sever Primary Controller Setting,
Network Status Monitoring & Setting,
IP Access Filter, SSL / TLS Certificates Setting,
Access Log Export, Controller Reset, Debug Status Monitoring,
Operation Log Monitoring, User Management,
Date & Time Setting, Daylight Saving Time Setting,
NTP Sever Setting, General Status, Controler Information |
RFID Card Capacity | As a Main-Controller: 800,000 (Storage)
As a Door Unit: 400,000 (1:N) / 800,000 (1:1) |
Maximum RFID Card Number Length | Supported up to 256-bits card number length
|
Mobile Credential Capacity | 400,000 (1:N) (Bluetooth)
400,000 (1:N) (NFC)
400,000 (1:N) (Dynamic QR Code) |
Fingerprint Capacity | As a Primary Controller: 100,000 (Storage)
As a Door Unit: 50,000 (1:N) / 100,000 (1:1) |
Face Capacity | As a Primary Controller: 100,000 (Storage)
As a Door Unit: 5,000 (1:N) / 100,000 (1:1) |
Palm Capacity | As a Primary Controller: 5,000 (Storage)
As a Door Unit: 3,000 (1:N) / 5,000 (1:1) |
Transaction Buffer | 5,000,000 Events |
Access Level | 100,000 Levels |
On-Board Access Point Control | 1 access point on board |
On-Board Reader Support | 2 (OSDP over RS-485) or 2 (Wiegand) with on-board IO |

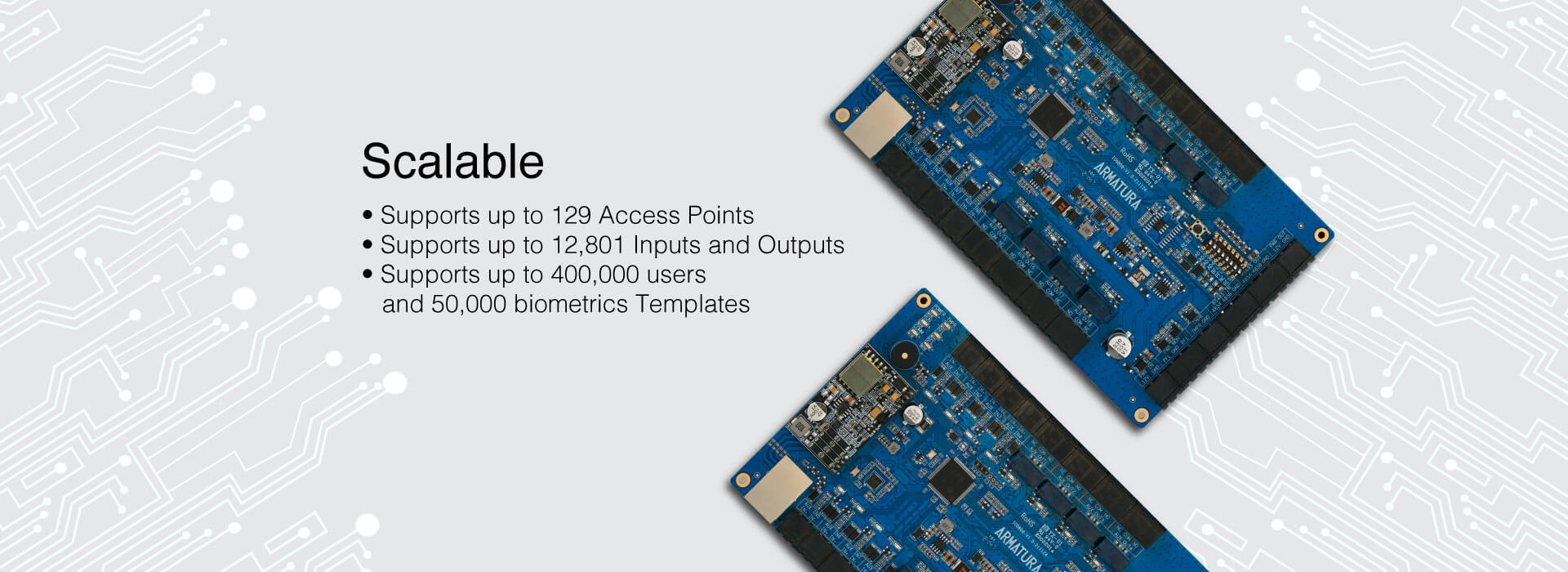

Maximum Access Points | 129 (with 32pcs AHDU-1460 modules through TCP/IP connection)
97 (with 24pcs AHDU-1460 modules through Armatura RS-485 over RS-485 connection) |
Maximum Readers | 258 (with 32pcs AHDU-1460 modules through TCP/IP connection)
194 (with 24pcs AHDU-1460 modules through Armatura RS-485 over RS-485 connection)
|
Maximum Inputs | 12,801 (with AHSC-1000 on board IO and 32pcs AHDU-1460 modules through TCP/IP
connection + 792pcs AHEB-1602 IO Expansion Board through OSDP over RS-485 connection) |
Maximum Outputs | 12,801 (with AHSC-1000 on board IO and 32pcs AHDU-1460 modules through TCP/IP
connection + 792pcs AHEB-1602 IO Expansion Board through OSDP over RS-485 connection) |
Maximum IO Board
(Access Control Mode) | 792pcs ( 24pcs direct connection through Armatura RS-485connection
+ 768 pcs through AHDU-1460 module through TCP/IP connection) |
Maximum IO Board
(Elevator Control Mode) | 8pcs*AHEB-1616 (direct connection through Armatura RS-485 connection)
for Max.128 floors Management
16pcs*AHEB-0808 (direct connection through Armatura RS-485 connection)
for Max.128 floors Management
24pcs*AHEB-1602(direct connection through Armatura RS-485 connection)
for Max.48 floors Management |
Maximum DU Modules | 32pcs (1*TCP/IP communication with AES-256 & TLS1.2 end to end secure channel)
24pcs (Armatura RS-485 communication with AES-256 end to end secure channel) |
