Armatura EP20 Series | All Weather Outdoor Multi-tech Smart Reader

Parameters

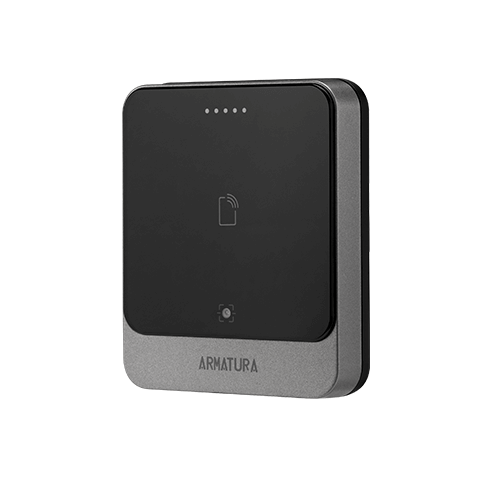

EP20C

Internal Number	EP20C	EP20CK	EP20CQ	EP20CKQ
Operating Frequency / Standards	125 kHz 13.56 MHz: ISO14443 types A & B, ISO15693 2.4 GHz Bluetooth
Functions	RFID, Bluetooth 5.2		RFID, Bluetooth 5.2 and QR code

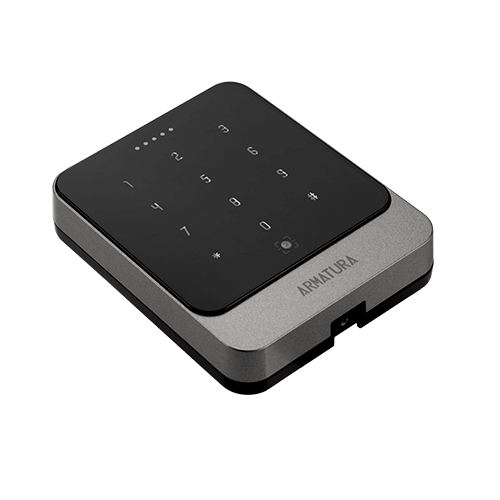

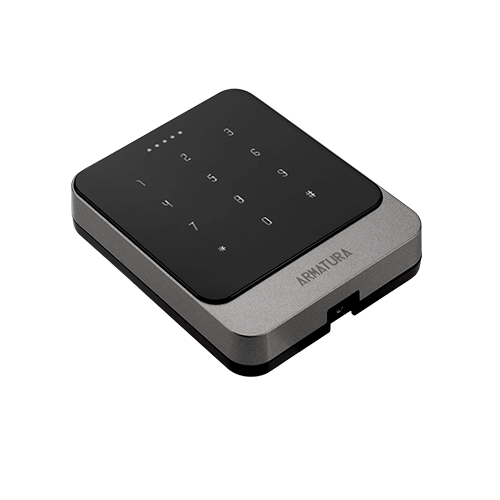

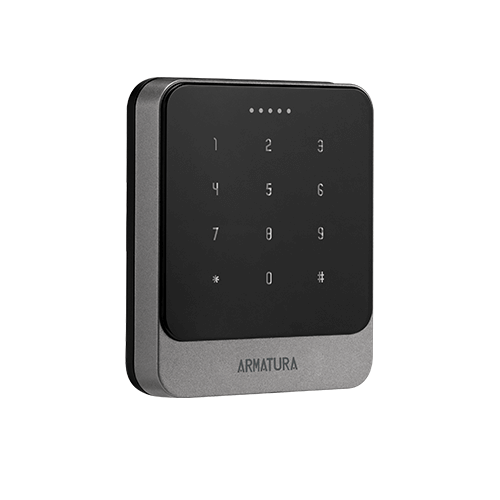

Keypad	N/A	Touch Keypad	N/A	Touch Keypad

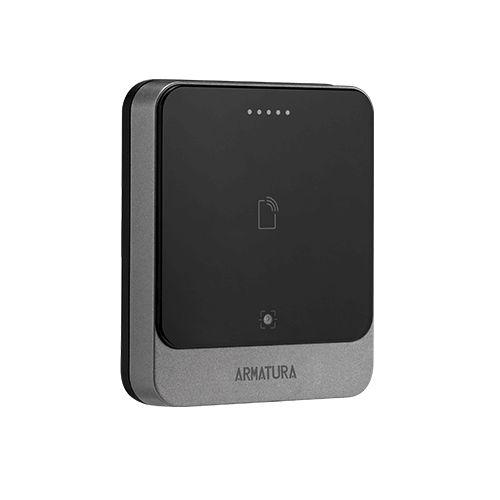

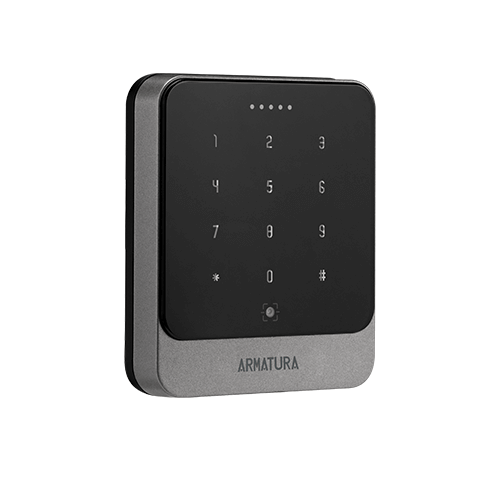

QR Code Scanner	N/A		Supported
QR Code Scanning Pattern	N/A		Area image (648*488 pixel array)
QR Code Scan Angle	N/A		Horizontal: 66°/ Vertical: 50°
QR Code Scanning Print Contrast	N/A		Print Contrast: 25% minimum reflectance difference Rotation, Pitch, Skew: 360°, +/-40°, +/-60°
QR Code Capability	One-Dimensional Code: UPC-A , UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14, EAN-128, UCC128, ISBN/ISSN, CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93, CODE128, Interleaved 2 of 5 code, Industrial 2 of 5 code, Matrix 2 of 5 code, Toshiba code, UK/Plessey, GS1 Two-Dimensional Code: QR code, PDF417, Data matrix, MicroPDF417, Aztec
QR Code Scanning Performance*	N/A		Narrow Width 6.0 mil (Code128) 9.0 mil (Code128) 15.0 mil (Code128) 20.0 mil (Code128) 6.0 mil (QR) 9.0 mil (QR) 15.0 mil (QR) 20.0 mil (QR)	Depth of Field 2.0"-3.1" (5cm-8cm) 2.0"-4.7" (5cm-12cm) 2.3"-7.7" (6cm-19.5cm) 2.3"-9.8" (6cm-25cm) 2.0"-2.3" (5cm-6cm) 2.3"-7.9" (6cm-20cm) 2.0"-3.5" (5cm-9cm) 2.0"-6.3" (5cm-16cm)
Communications & Panel Connection	Wiegand OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication)
Reading Distance	13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder) Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
Data Protection	AES128 (Secured Communication between Reader & Controller) Secure Data Storage in EAL6+ Certified Crypto Chip
Visual Indicator	RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)
Audio Indicator	Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP)
Power Requirement / Power Supply	9 VDC to 24 VDC
Operating Temperature	-22°F - 158°F /-30°C to 70°C
Dimensions	3.54" W x 4.24" H x 0.93" D (89.8 x 107.8 x 23.6mm)
Tamper Switch	Magnetic tamper detection system
Certifications	CE, FCC, RoHs3.0, WEEE，UL294, IEC EN/ BS EN 60839 Grade 4
Mounting	Suited for Asian / European / single-gang installations or any flat surface mounting
Protection / Resistance	Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK10 certified	Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK07 certified	Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK07 certified	Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK07 certified
UV Stability	Nil structural degradation for the life of the reader in 3 years
Housing Material	Polycarbonate UL94-V0 & UL746C (F1)

Remarks:

**Standard version provides “Read only” function. Customization is required for “Read & Write” function.

*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

QR scanning performance was resulted in a laboratory testing environment, the luminance was recorded as 250 Lux
