| Internal Number | EP10C |
| Operating Frequency / Standards | 125 kHz
13.56 MHz: ISO14443 types A & B, ISO15693
2.4 GHz Bluetooth |
| Functions | RFID and Bluetooth 5.2 |
| Communications
& Panel Connection | Wiegand
OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication) |
| Reading Distance | 13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder)
Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader) |
| Data Protection | AES128 (Secured Communication between Reader & Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip |
| Visual Indicator | RGB LEDs (Configurable By 'Armatura Connect' Mobile APP) |
| Audio Indicator | Internal buzzer with adjustable intensity
(Configurable By 'Armatura Connect' Mobile APP) |
| Power Requirement / Power Supply | 9 VDC to 24 VDC |
| Operating Temperature | -22°F - 158°F /-30°C to 70°C |
| Dimensions | Standard Cover: 1.89" W x 4.52" H x 0.97" D (48 x 114.8 x 24.7mm)

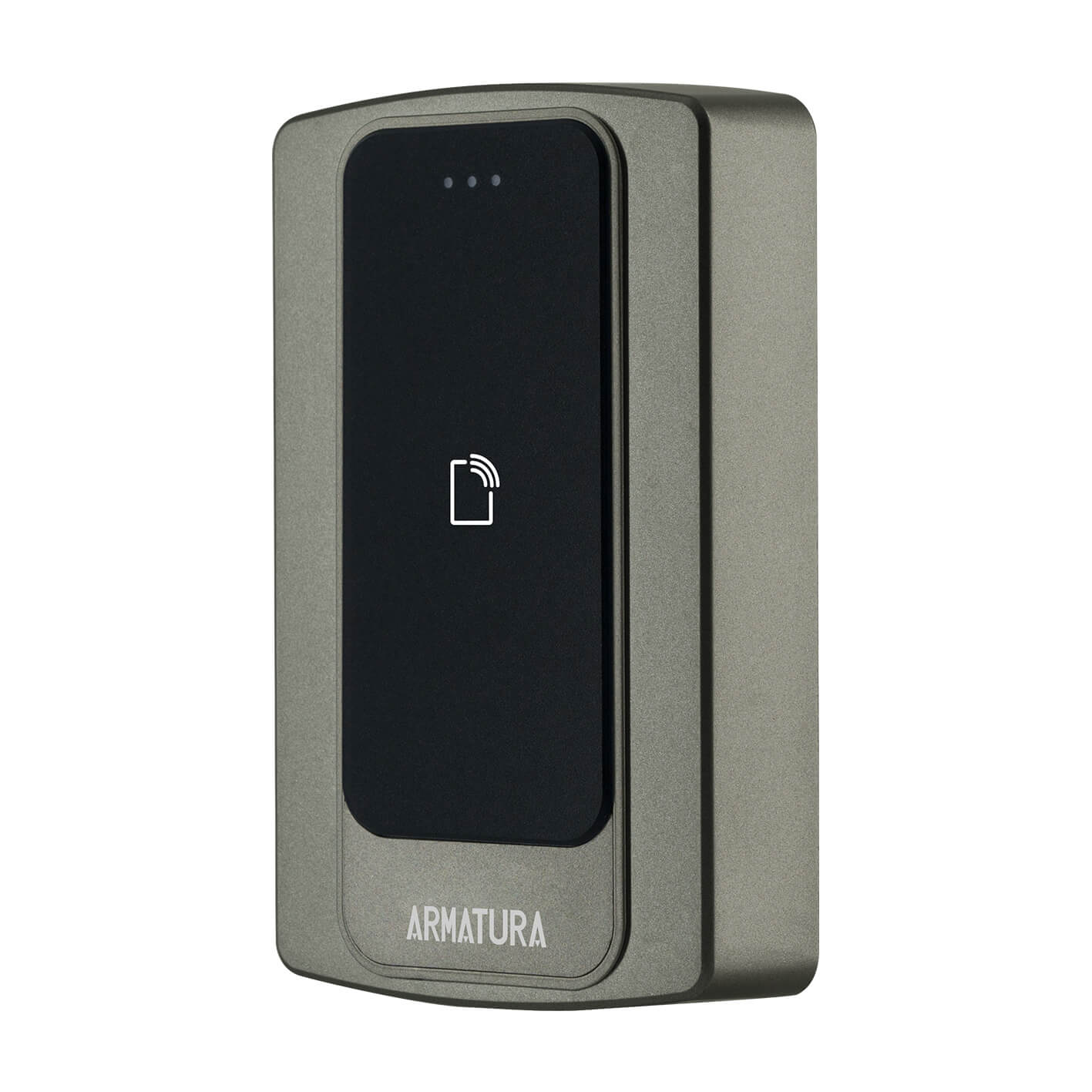

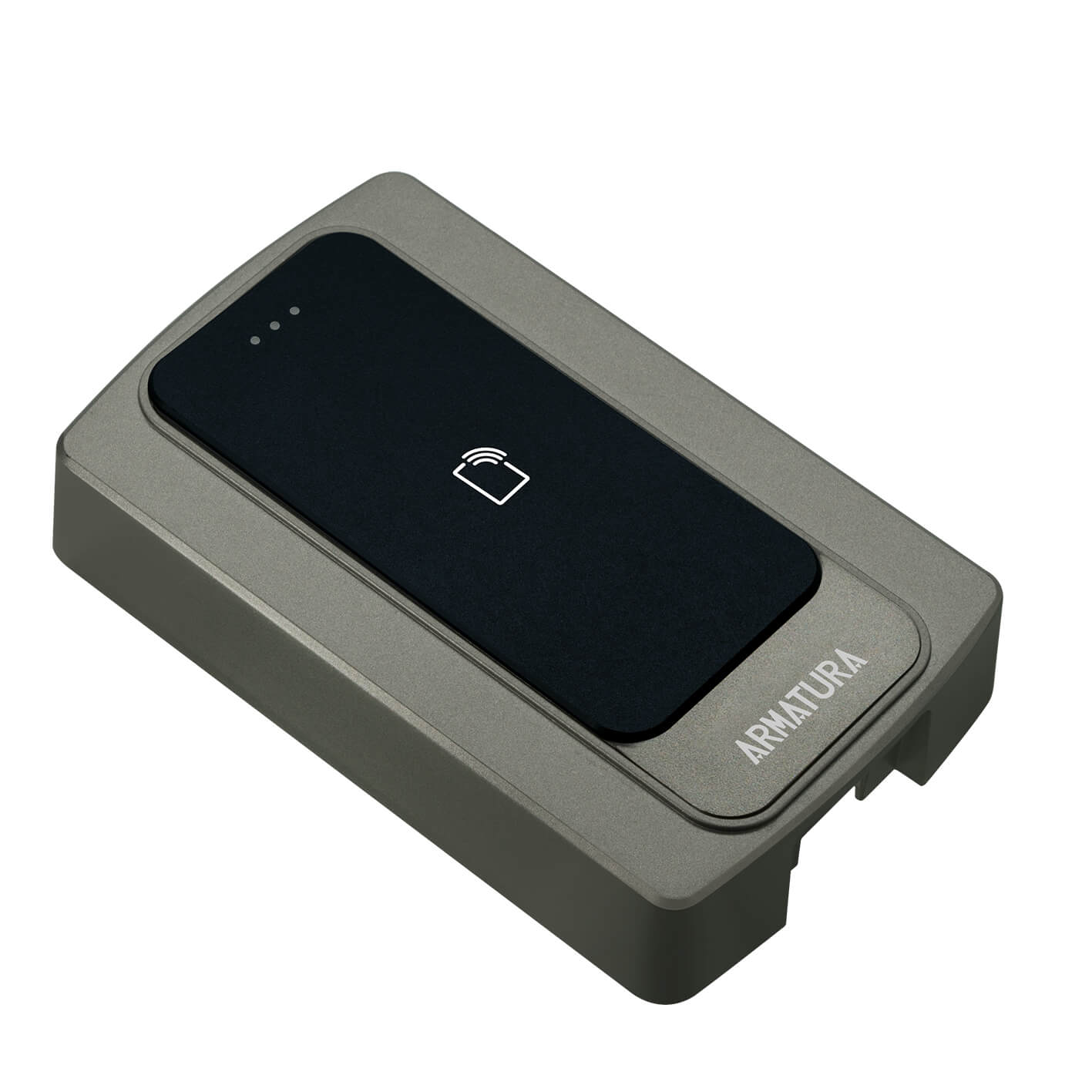

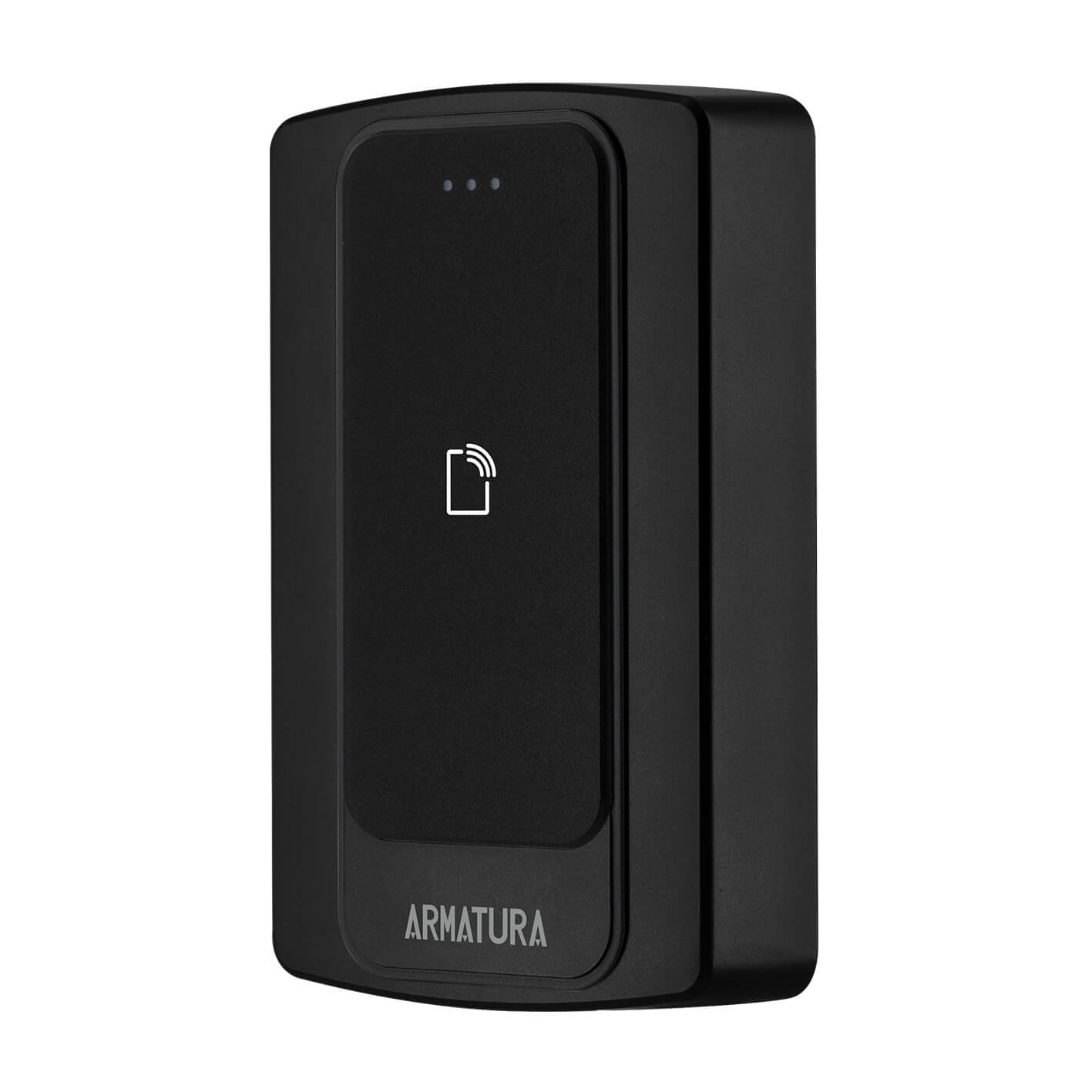

Gangbox Cover: 3.00" W x 4.84" H x 0.97" D (76.2 x 123.0 x 24.7 mm) |
| Tamper Switch | Magnetic tamper detection system |
| Certifications | CE, FCC, RoHs3.0, WEEE，UL294 |

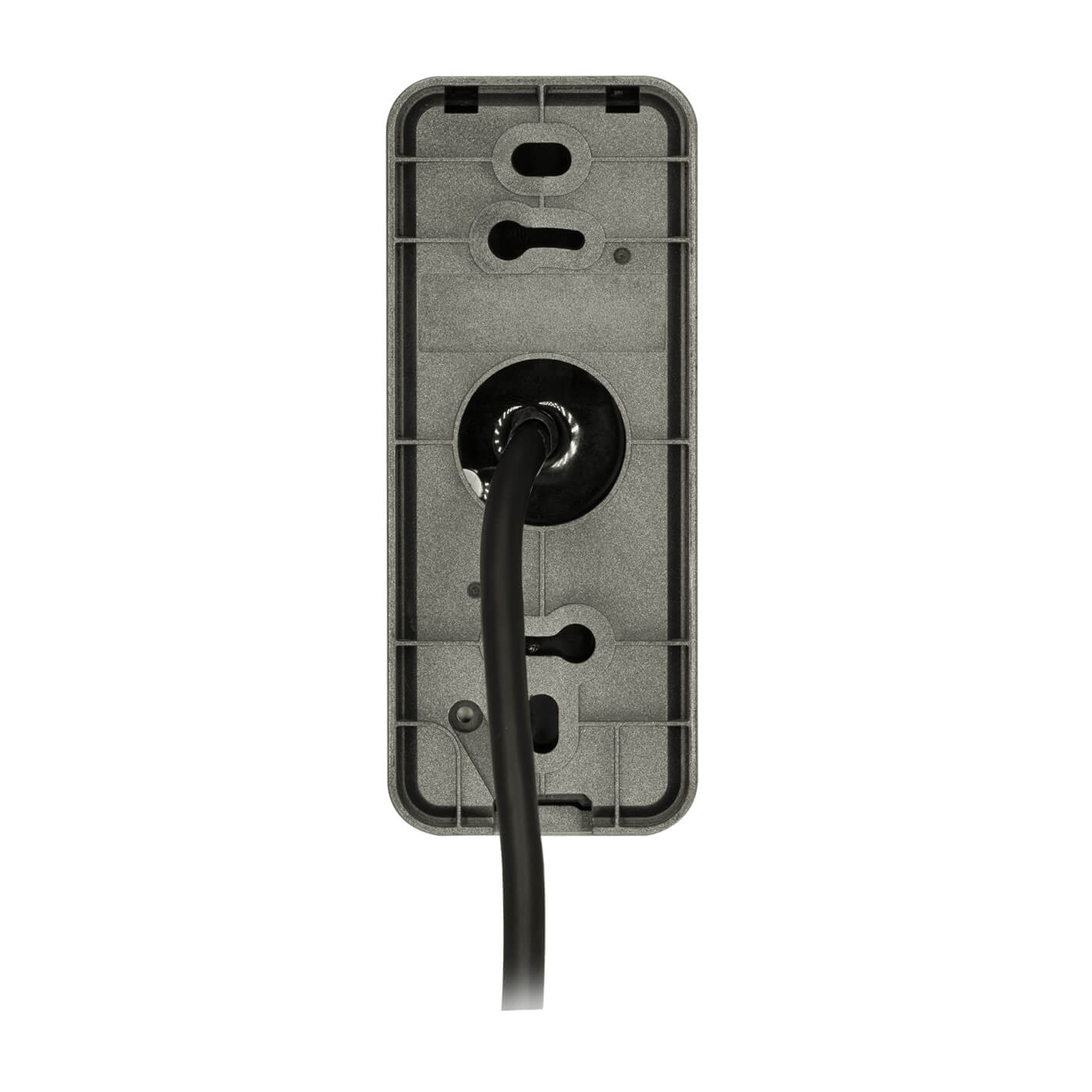

| Mounting | Suited for mullion-mount door installations or any flat surface mounting
Optional Asian / European / single-gang-box back-box spacing |
| Protection / Resistance | Weather & Dust Proof Protection Rating compliant with IP68
Reinforced Vandal-proof Structure IK10 certified |
| UV Stability | Nil structural degradation for the life of the reader in 3 years |
| Housing Material | Polycarbonate UL94-V0 & UL746C (F1) |
