Parameters

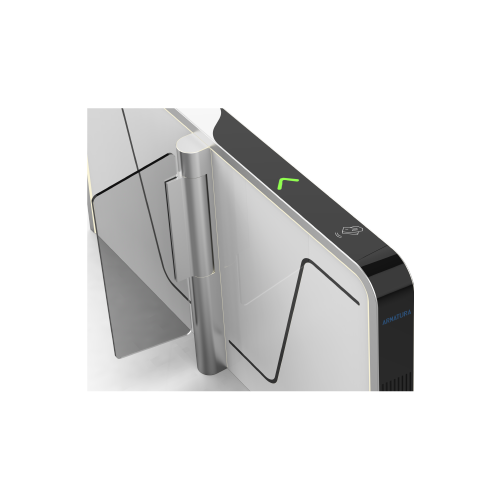

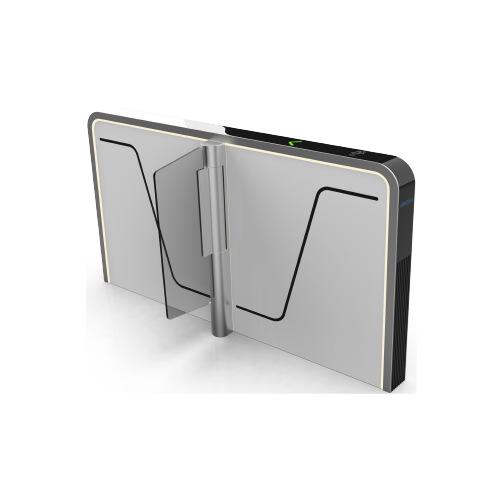

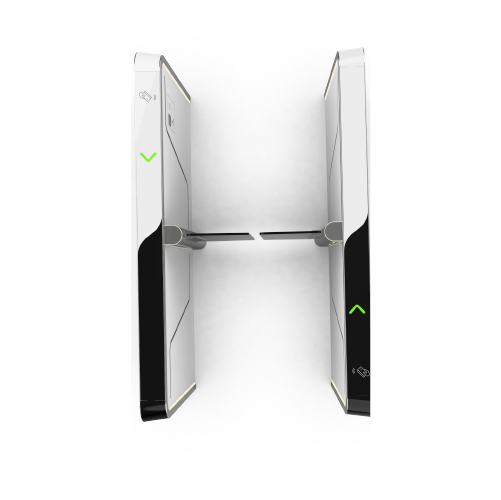

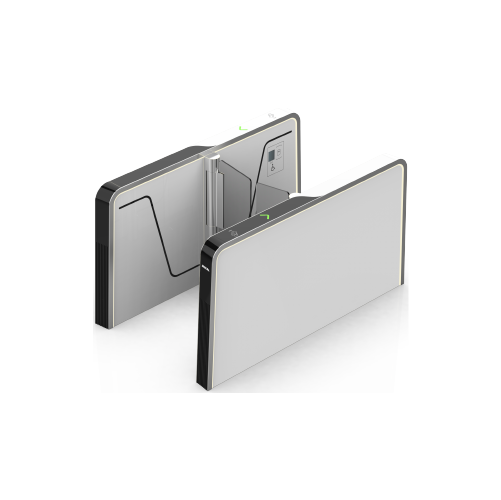

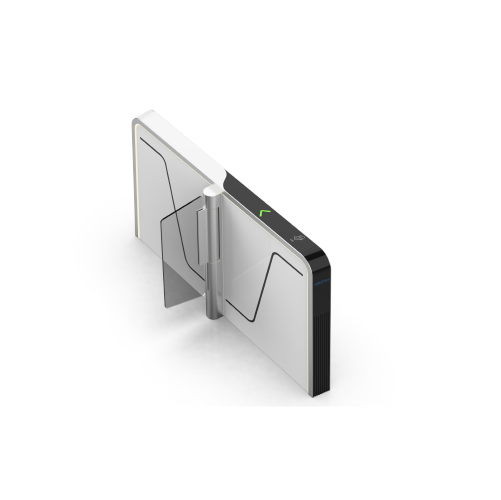

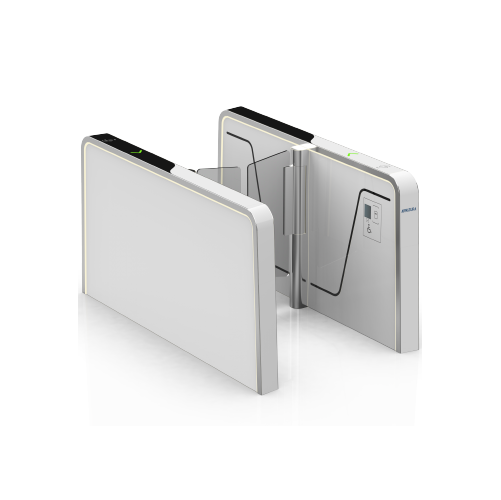

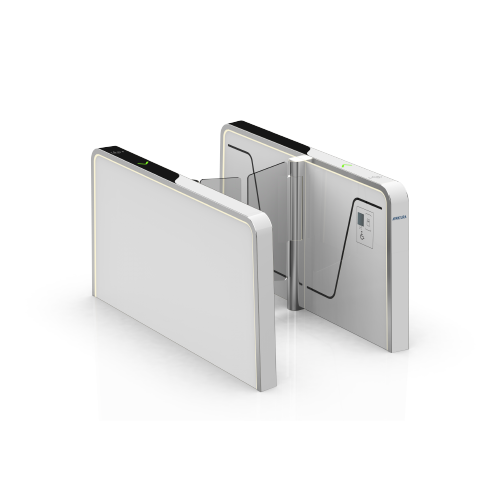

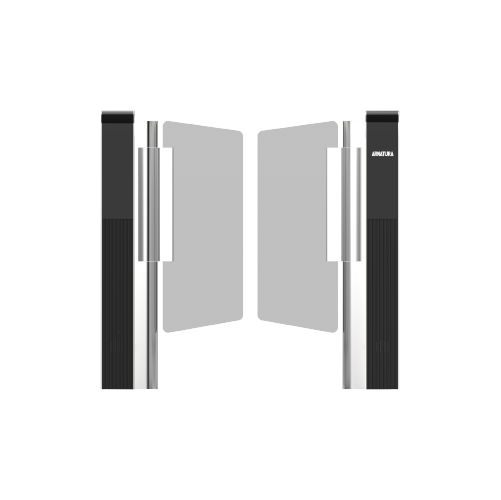

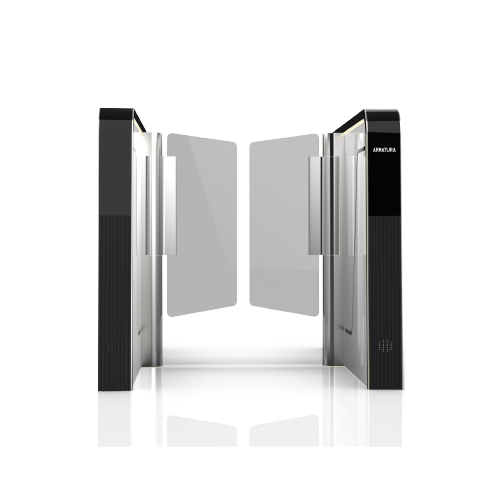

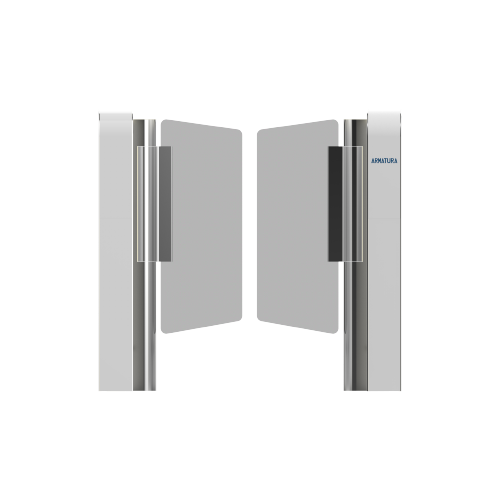

Avalon Series

Internal Number	Avalon-S1000	Avalon-S1200
Audio Indicator	Internal Buzzer

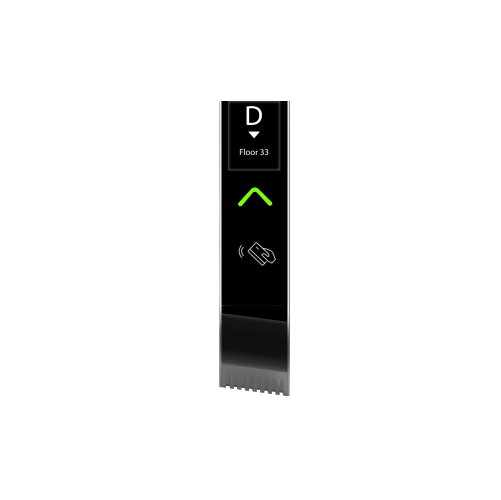

Visual Indicato	Visual Indicators on the Lid Panel Green (Arrow): Standby Red (Cross Icon): Door Closing LED Strip Visual Indicators White (Breathing Light): Standby Green (Running Light): Door Opening Red (Flashing Light): Alarm
Display	Optional (Available with integrated facial recognition systems)
Lane Type	Single Lane	Dual Lane

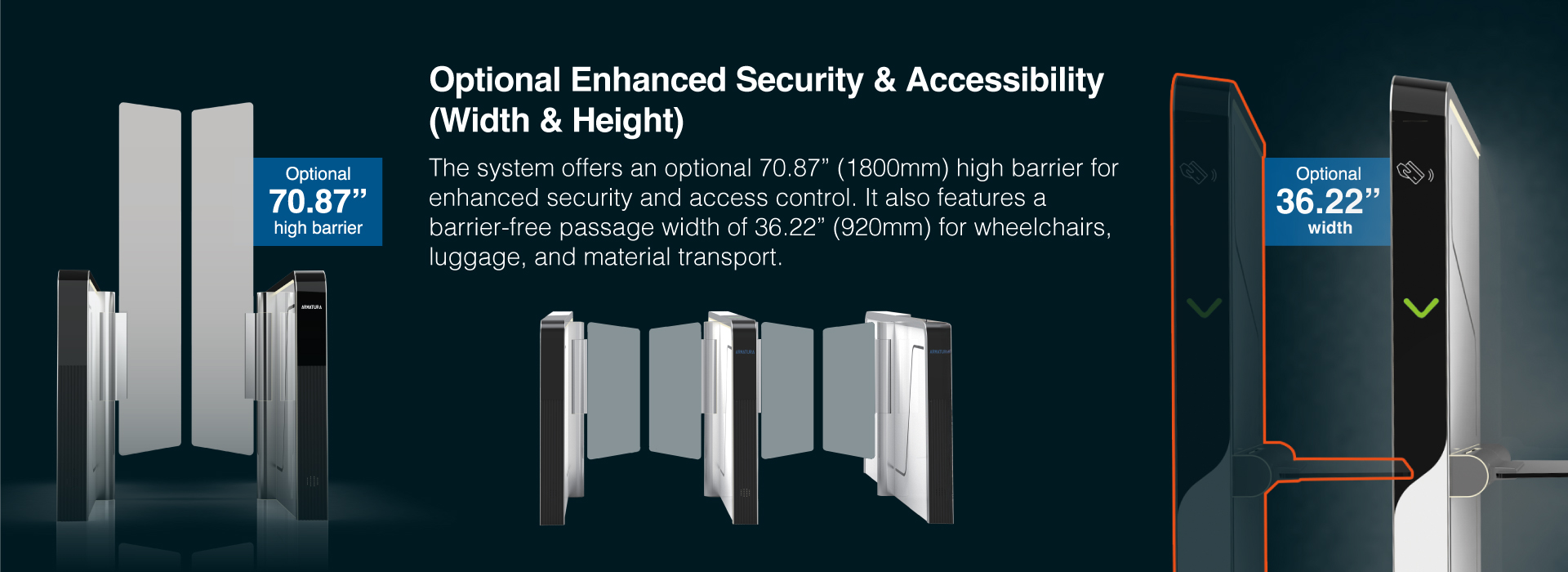

Lane width	25.59"（650mm) (Standard), 36.22” (920mm)(Optional)(ADA Compliance)

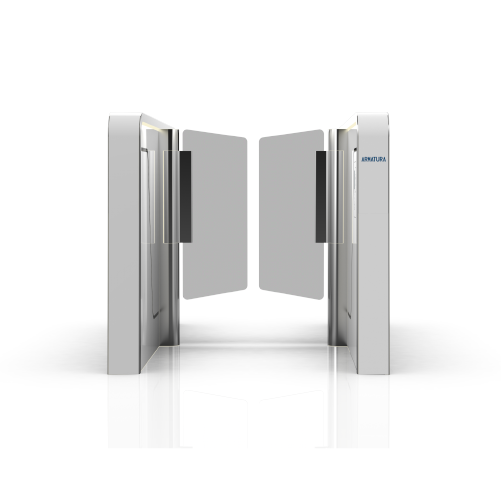

Barrier Movement Type	Swing

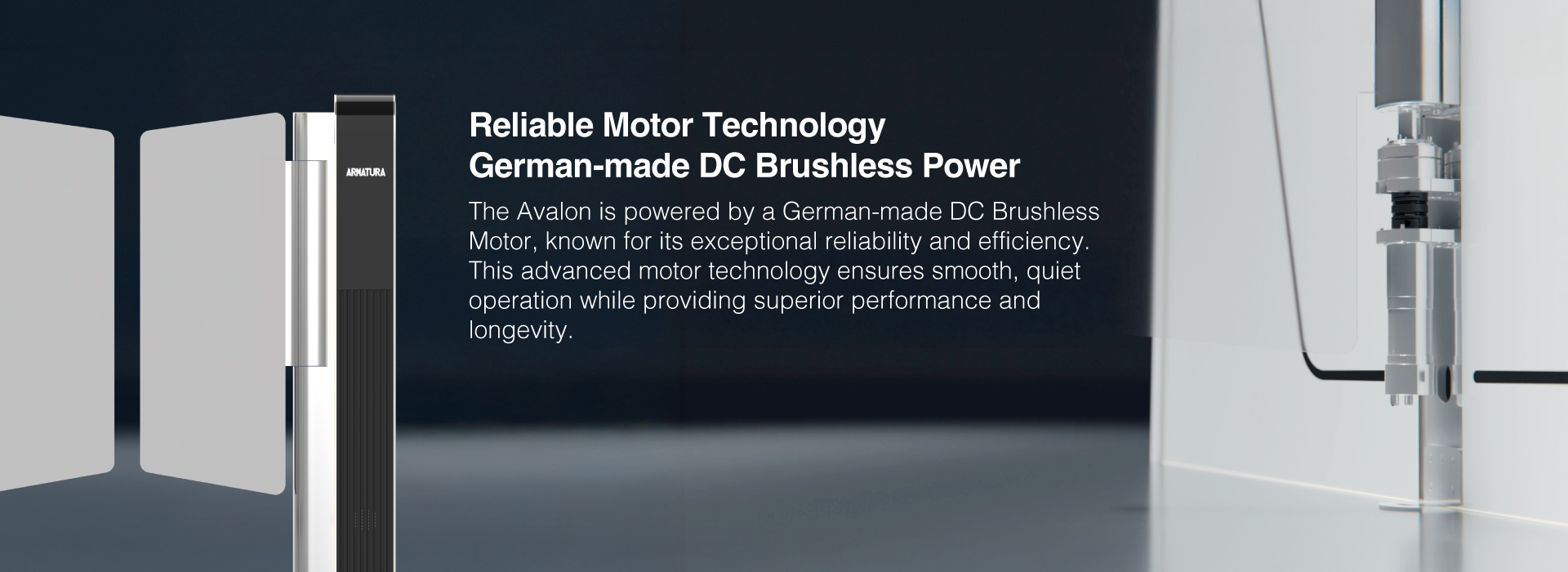

Motor	German-made DC brushless motor
Movement Speed	0.3-0.6 seconds per movement (open/close timing) (depends on the leaf size)
Movement Accuracy	≤1.5 Degree per movement
Clutch	Mechanical clutch for anti-panic/anti-collision

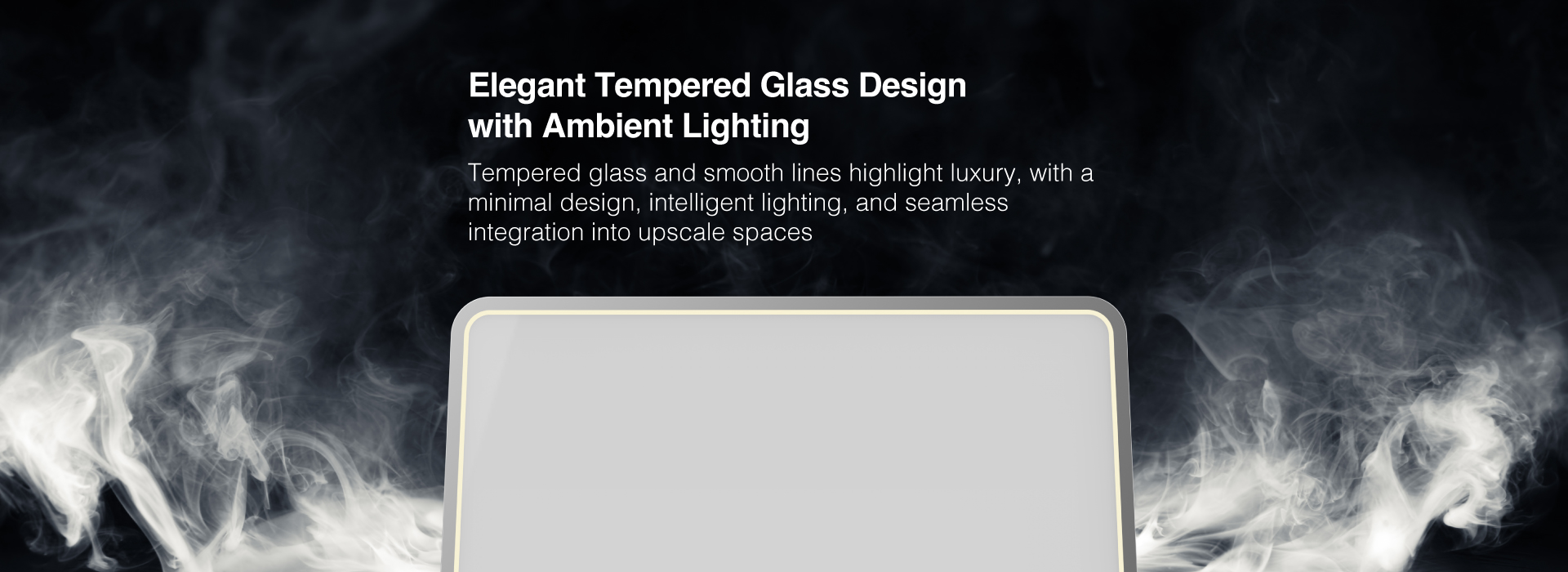

Lid Material	Tempered glass (black + white) (standard)
Lid Options Authentication Methods	Under mount options: RFID / QR Code / Mobile Credentials/ Fingerprint / Facial recognition / Palm recognition / RFID + QR Code / Fingerprint + QR Code / RFID + QR Code + Fingerprint / Mobile Credentials Top mount option: Compatible with external facial recognition systems Side mount option: RFID / QR Code / RFID + QR Code / Mobile Credentials
Chassis Material	Tempered Glass and High-carbon Steel
Chassis Colour	White (Standard), Customizable

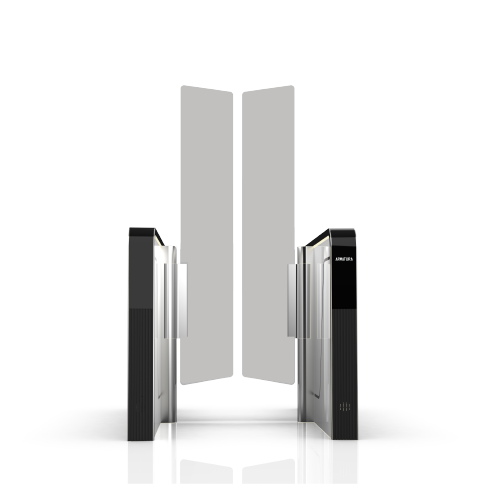

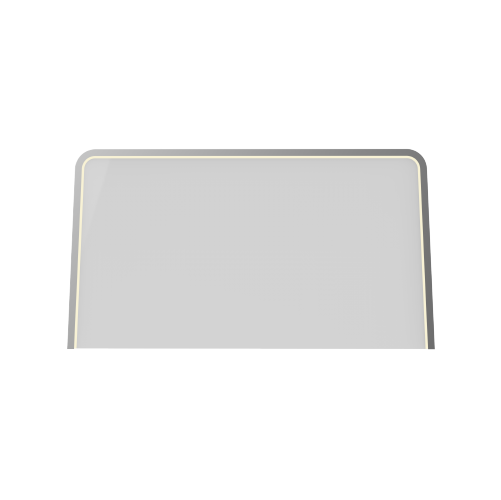

Door Leaf Material (H x W)	Material: Acrylic(Standard), Tempered Glass(optional) Size: 29.33” x 11.41 (745 x 290mm)(Standard), 29.33” x 16.73” (745 x 425mm) / 62.99” x 11.41” (1600*290mm)/ 62.99” x 16.73” (1600x425mm)(Optional)
IR Sensors	12 pairs (Military-grade, matrix layout)
Motherboard Function	System configuration, anti-pinch, anti-tailgating, pass memory, safety logic, and more
Motherboard Communication	Fire alarm Port(Relay)1, RS485 Port1, RS232 Port*1 (Standard), TCP/IP (Optional)
Controller	Advanced servo controller Armatura Controller: AHDU-1260/ AHDU-1460 (Optional)
Credential Options	Under mount RFID, QR code & Mobile Credentials reader: (support model: Armatura EP10C & Armatura EP20 Series & Armatura VG10CKQ Series) Under mount fingerprint reader: Armatura EP30CF Series Under mount facial recognition terminal: coming soon Under mount palm recognition terminal: coming soon Side mount RFID, QR code & Mobile Credentials reader: (support model: Armatura EP10C & EP20 Series & VG10CKQ Series) (For disable people) Top mount facial recognition terminal: OmniAC20 / OmniAC30/ FT10CMQ
Flow Rate	RFID: 30 passengers per minute QR Code: 30 passengers per minute Mobile Credentials: 30 passengers per minute Fingerprint: 20passengers per minute Face: 15 passengers per minute Plam: 15 passengers per minute Emergency: 60 passengers per minute
Accessibility	Under mount facial recognition version: adult, children, disability Rest of the versions: adult, children (with care), disability (with care)
Power Supply	100-240VAC, 50/60Hz
Power Rating	40VA (Stand By); 200VA (Operation)
Fire Signal	Input for voltage-free contact
Noise Level	Less than 60dB
MTTR	Less than 60 minutes
MCBF	30 million
Weight	882 lbs (400kg) Net Weight: 661 lbs (300kg)	551 lbs (250kg), Net Weight: 441 lbs (200kg)
Dimension (L x W x H)	70.9" x 4.7" x 38.6" (1800 x 120 x 980mm )(Standard)
Dimensions With Packing (L x W x H)	74.8" * 12.6" * 47.2" (1900 x 320 x 1200mm) (Standard)
Operating Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	95% RH (non-condensing)
Certifications	CE, FCC, RoHS(coming soon), UL325(coming soon), UL2593(coming soon)
Ingress Protection Rating	IP33 (Dustproof and Waterproof for indoor use)
Supported Software	Armatura One

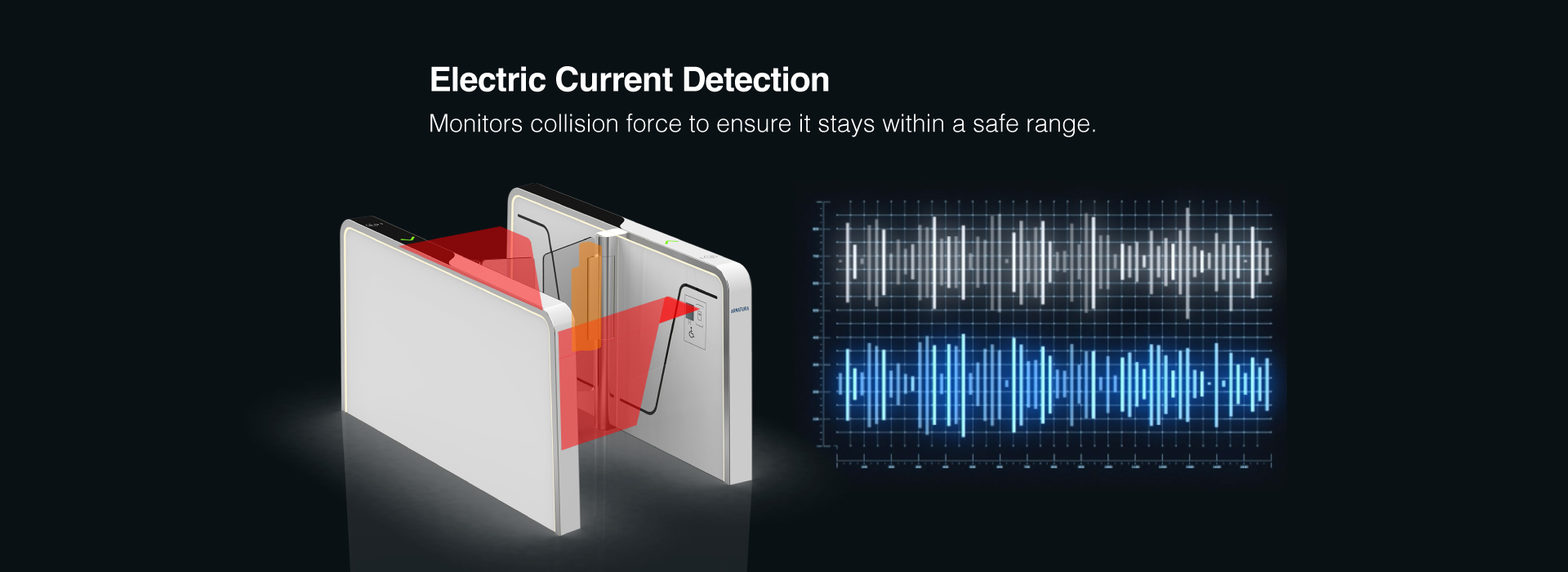

Safety Features	Infrared Anti-Clamping Mechanical Anti-Clamping Electric Current Detection Anti-Clamping Power-Off Fail-Safe Emergency Escape Function Overforce Feedback Control Safety force sensing Lower safety sensors Accurate presence sensing Emitter/ receiver infrared sensors technology Logic voltage 24V DC Voltage free contact input for fire alarm fail state Auto opening on power off Anti-panic push opening in operation Wide walkway for wheelchair or easier access Accompanied wheelchair or child passage management (under mount facial recognition & Side mount RFID & QR code reader version)
