On-Permise Software
ARMATURA PHALANX

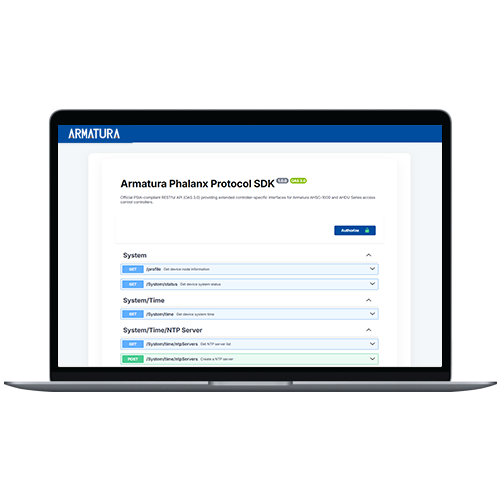

Armatura Phalanx Protocol SDK is Armatura’s official implementation of the Physical Security Interoperability Alliance (PSIA) standards. It is specifically built upon the PLAI (Physical Logical Access Interoperability), Area Control, Common Security (CSEC), and Common Metadata Event specifications, delivering full compliance with the industry’s most widely adopted open interoperability framework for physical security devices.
Enquire Now
Parameters
ARMATURA PHALANX
Supported Products
AHSC-1000 Controller, AHDU Series Controller
Protocol
Armatura Phalanx Protocol (PSIA/PLAI compliant)
API Type
RESTful Web API (HTTP/HTTPS)
Data Format
XML (per PSIA schemas)
Authentication
Basic Auth, Issuer-Signature, CSEC Device Ownership
Event Streaming
PSIA Metadata Event sessions (TCP/UDP/raw data support)
Supported Resources
Area Control (Holidays, Time Schedules, Permissions, Credentials, Doors, etc.) Metadata (Sessions & Streams)
CSEC Security Model
Documentation
Full Swagger UI + PSIA XSD schemas

Download
Armatura_phalanx_DataSheet_20260423
3.78MB
05 / 11 / 2026
Armatura_Phalanx_Protocol_Webserver_API_User_Manual-05-05-2026
0.52MB
05 / 11 / 2026
