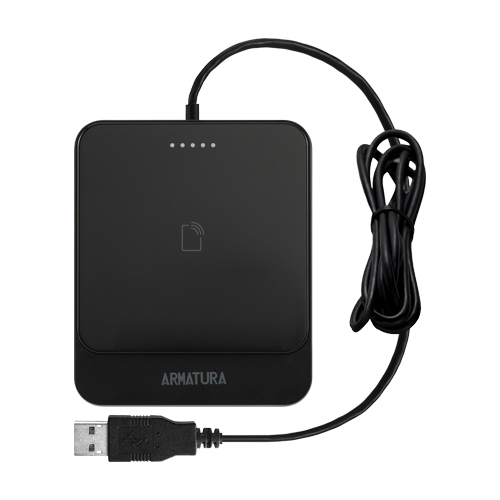

Intelligent Multi-tech Enroller
Internal Number | EP20ENC |
Operating Frequency / Standards | 125 kHz
13.56 MHz: ISO14443A types A & B, ISO15693 |
Functions | RFID Reading |
Communications & PC Connection | OSDP (v2.2) via USB2.0 (Up to 128bits SCP Secure Communication) |
Reading Distance | 13.56MHz & 125kHz: Up to 5.1"/130 mm (depending on environment and transponder) |
Data Protection | AES128 (Secured Communication between Reader & PC)
Secure Data Storage in EAL 6+ Certified Crypto Chip |
Visual Indicator | RGB LEDs |
Audio Indicator | Internal buzzer |
Power Requirement / Power Supply | 5 VDC
Power supply through the USB port - 1.5 m / 3.28 ft USB cable |
Operating Temperature | -40°F - 149°F /-40°C to 65°C |
Dimensions | 3.52" W x 4.23" H x 0.90" D (89.5 x 107.5 x 23mm) |
Certifications | CE, FCC, RoHs3.0, WEEE（Coming Soon），UL294（Coming Soon） |
Mounting | Desktop |
UV Stability | Nil structural degradation for the life of the reader in 3 years |
Housing Material | Polycarbonate UL94-V0 & UL746C (F1) Housing |
Compatible Operating Systems | Windows® 7, Windows® 10 & Windows® 11 |
