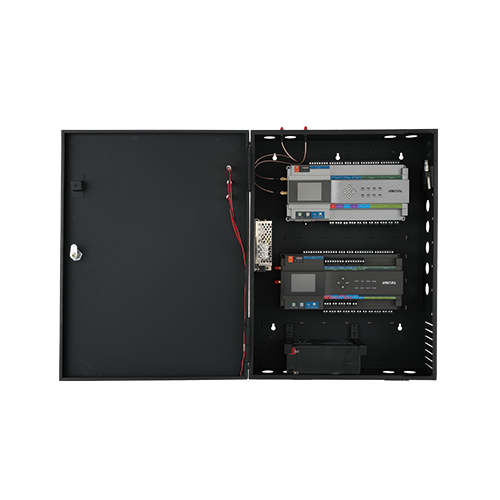

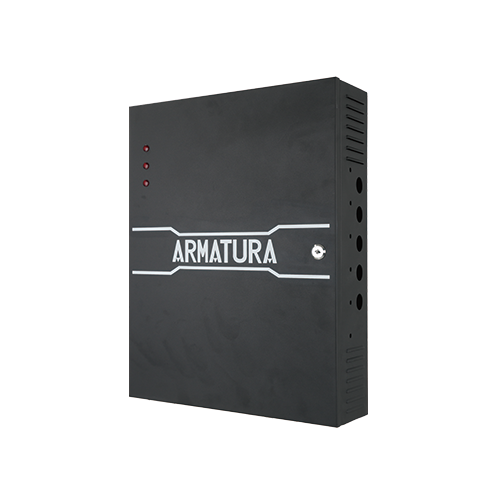

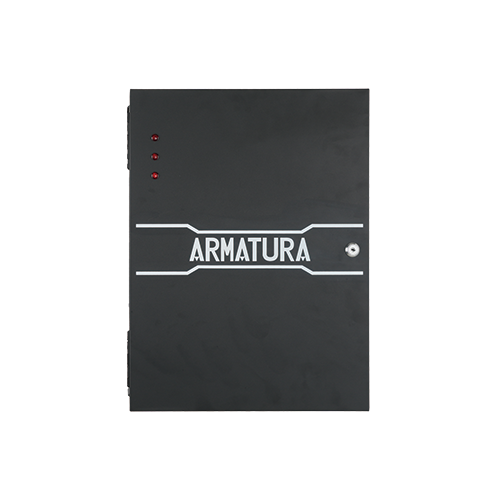

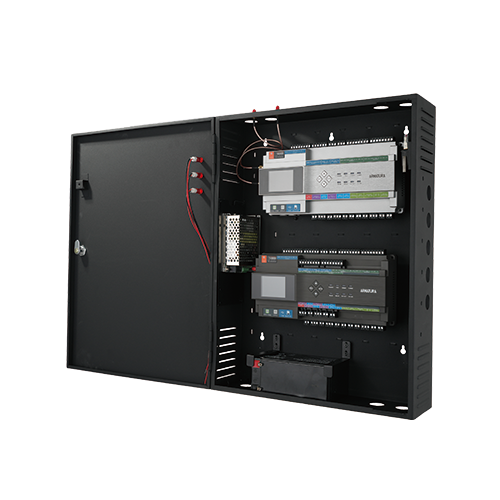

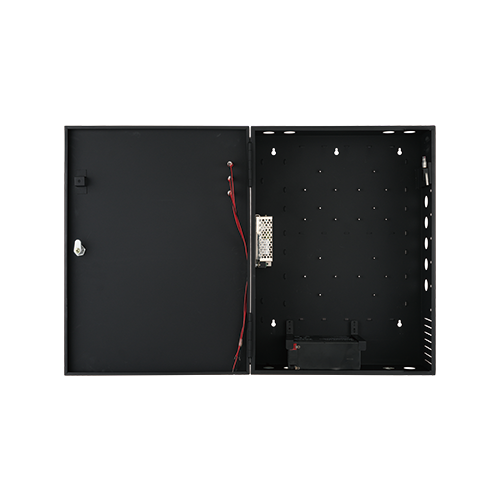

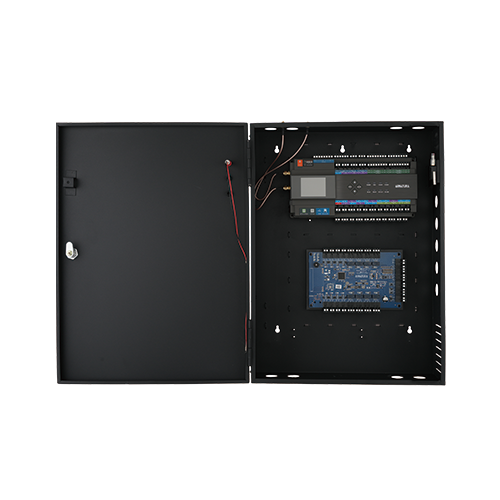

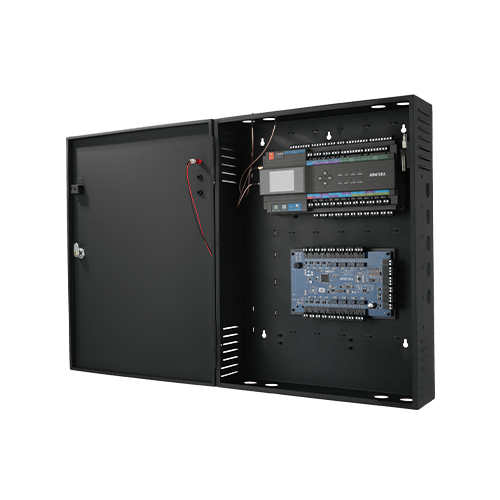

Armatura Horizon Series ENC2 | Professional-grade Enclosures for Controllers and Expansion Boards

Parameters

ENC2

	ENC-2A	ENC-2B
Power Supply Unit	N/A Suggested 3rd Party Power Supply Model*: PMU-13V155WCCA@90-132Vac	Output:13.8Vdc@9.5A Input (Charging): 13.3V/1.5A,50-60 Hz, Working Temp: -4~158°F(-20°C ~+70°C) StorageTemp: -40~176°F(-40~80℃) Working Humidity: 5%-95% Cert: CE, FCC, RoHS
Visual Indicators	AC input and DC output LED indicators (Red & Green)
Backup Battery	N/A, Suggested 3rd Party Backup Battery Model**:12V, 72Ah/20HR
Wi-Fi Antenna Port	12.4GHz Wi-Fi (IEEE802.11ac, SMA Female) 15GHz Wi-Fi (IEEE802.11n,SMA Female) At the Top of the Enclosure
Bluetooth Antenna Port	1*2.4GHz BLE5.2 (SMA Female) At the Top of the Enclosure
Number of Knockouts	Top: 6pcs (1" diameter) Bottom: 6pcs (1" diameter)	Top: 4pcs (1" diameter) Left: 5pcs (1" diameter) Bottom: 4pcs (1" diameter)
Max. Support Boards	1	2
Certifications	CE, FCC, RoHS, UL294 (coming Soon)
Compatabile Devices	AHSC-1000, AHDU Series, AHEB Series
Casing Material	SPCC/ St12 standard Cold-rolled Steel
Enclosure Dimensions	13.8"W x 11.8"H x 3.5"D (349mm x 299mm x 90mm)	14.96"W x 20.08"H x 4.73"D (380mm x 510mm x120mm)
Power Supply Unit Dimensions	4.33"W x 3.07"H x 1.42"D (110mm x 78mm x 36mm)	7.01"W x 3.82"H x 1.50"D (178mm x 97mm x 38mm)
Backup Battery Dimensions	7.68''L x 3.94''W x 5.12'' H (195 x 100 x 130mm)	7.68''L x 3.94''W x 5.12''H (195 x 100 x 130mm)
Weights	12.9Ibs (5850g)	14.01Ibs (6350g)

*This is a recommendation only. Users should consider their actual deployment scenarios to select the power supply device that best suits their needs.

**This is a recommendation only. Users should consider their actual deployment scenarios to select the backupup battery model that best suits their needs
