ENC1
ENC1
Horizon Series

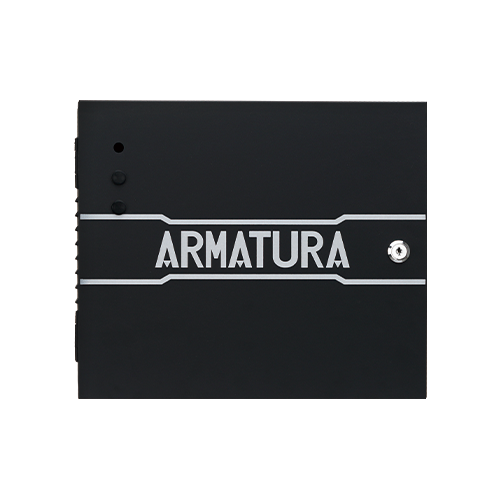

ENC1A & B
Professional-grade Enclosures for
Controllers and Expansion Boards
Parameters
ENC1



ENC-1A
ENC-1B
Power Supply Unit
N/A
Suggested 3rd Party
Power Supply Model*:
PMU-13V155WCCA@90-132Vac
Output: 13.7Vdc@4.5A
Input (Charging): 13.7V/0.5A,47-63Hz,
Working Temp: -4~131°F(-20~55℃)
StorageTemp: -40~176°F(-40~80℃)
Working Humidity: 10%~95%
Cert: CE, FCC, RoHS
Visual Indicators
AC input and DC output LED indicators (Red & Green)
Backup Battery
N/A, Suggested 3rd Party Backup Battery Model**:12V, 72Ah/20HR
Wi-Fi Antenna Port
1*2.4GHz Wi-Fi (IEEE802.11ac, SMA Female)
1*5GHz Wi-Fi (IEEE802.11n,SMA Female)
At the Top of the Enclosure
Bluetooth Antenna Port
1*2.4GHz BLE5.2 (SMA Female) At the Top of the Enclosure
Number of Knockouts
Top: 6pcs (1" diameter)
Bottom: 6pcs (1" diameter)
Max. Support Boards
Certifications
CE, FCC, RoHS, UL294 (coming Soon)
Compatabile Devices
AHSC-1000, AHDU Series, AHEB Series
Casing Materia
SPCC/ St12 standard Cold-rolled Steel
Enclosure Dimensions
13.8"W x 11.8"H x 3.5"D (349mm x 299mm x 90mm)
Power Supply Unit
Dimensions
4.33"W x 3.07"H x 1.42"D (110mm x 78mm x 36mm)
Backup Battery
Dimensions
7.68''L x 3.94''W x 5.12'' H (195 x 100 x 130mm)
Weights
5.67Ibs (2570g)
6.22Ibs (2820g)
*This is a recommendation only. Users should consider their actual deployment scenarios to select the power supply device that best suits their needs.
**This is a recommendation only. Users should consider their actual deployment scenarios to select the backupup battery model that best suits their needs.
