AMT-PVR-10
AMT-PVR-10

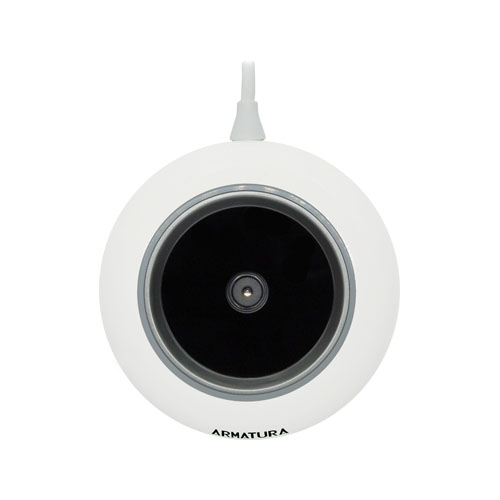

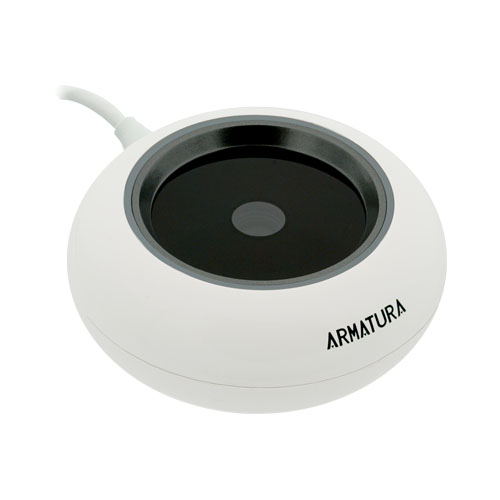

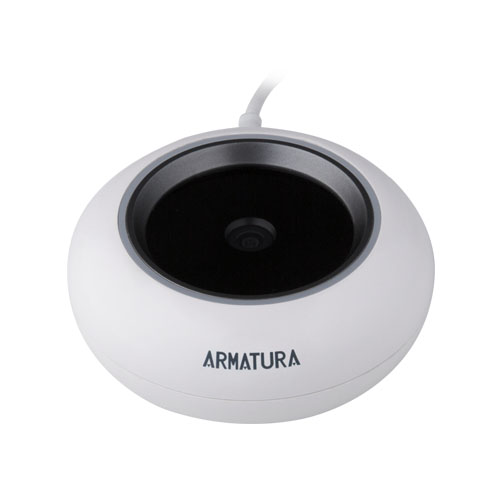

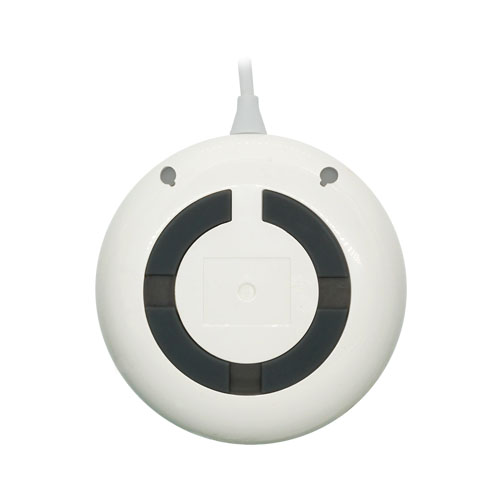

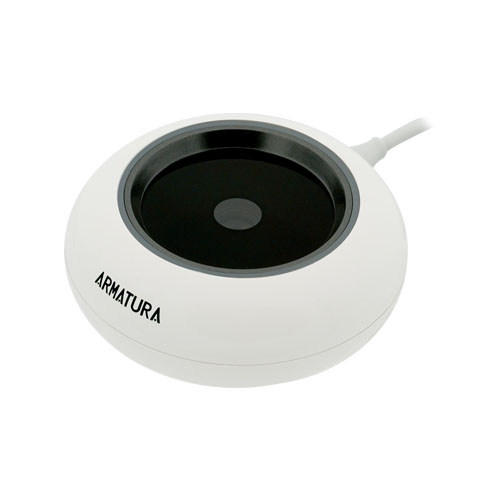

AMT-PVR-10 palm reader enclosure embeds the AMT-PVM-10 module, a single-lens Near-Infrared (NIR) light camera module. The reader is used to collect grayscale palm images formed by palm prints and subcutaneous palm vein patterns for biometric recognition.
Parameters
AMT-PVR-10


General Information

Interface
USB 2.0
Power Supply
DC 5.0V/ 400mA
Power Consumption
≤0.85 W (standby); ≤2.0W (operation)
Operating Temperature
-10°C ~ 55°C / 14°F ~ 131°F
Storage Temperature
-20°C to 80°C / -4°F ~ 176°F
Operating Humidity
0 ~ 90% RH
Dimensions (D*H)
83 (D) * 34 (H) mm (±1mm)
USB Cable Length
1.0 m / 3.3 ft
Indicator LED
Red, Green, Blue
SDK
Armatura PalmLite SDK 12.0
Certification
CE, FCC, RoHS, WHQL
Sensor

CMOS
1/2.7’’ HDR CMOS Sensor
Dynamic Range
83 dB
Optical Wavelength
850 nm
Image Type
256 Grayscale Levels
Image Resolution
480W * 640H
Default Output Format
MJPEG
Distortion Rate
≤1%
Field of View
Horizontal: 37°; Vertical: 48°; Diagonal: 58°
Maximal Frame Rate
25 fps
Recognition Distance
15 cm ~ 35 cm / 6 inch ~ 14 inch


Download
AMT-PVR-10 Datasheet 20220921
0.44MB
09 / 21 / 2022
PVR-10 User Manual 1.2
0.77MB
03 / 13 / 2023
Armatura SDK Guide PalmLite Windows 202206
1.19MB
06 / 11 / 2022
Armatura SDK Guide PalmLite Android 202206
1.14MB
06 / 11 / 2022
Armatura SDK Brochure PalmLite 20220928
1.18MB
09 / 28 / 2022
