AMT-FAPVR-30
AMT-FAPVR-30

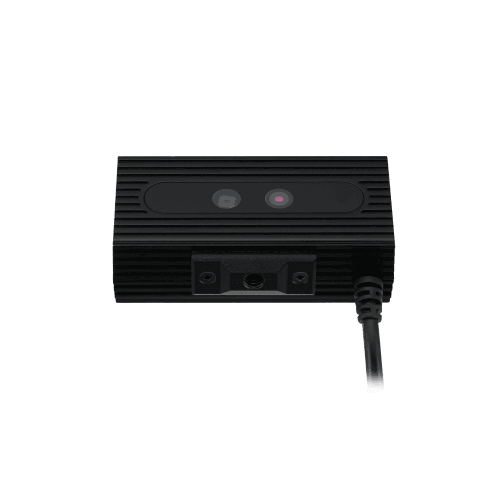

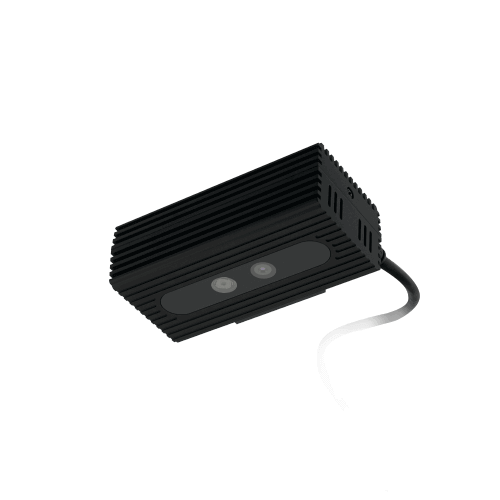

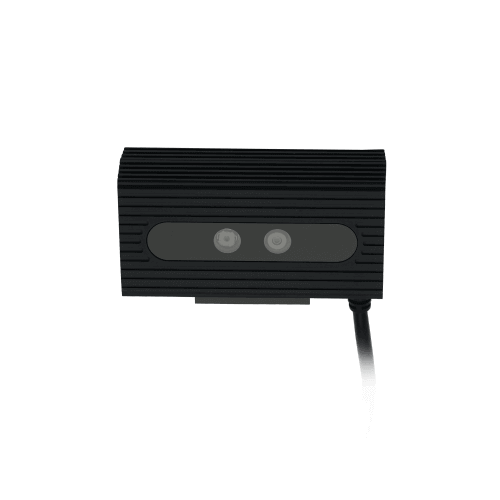

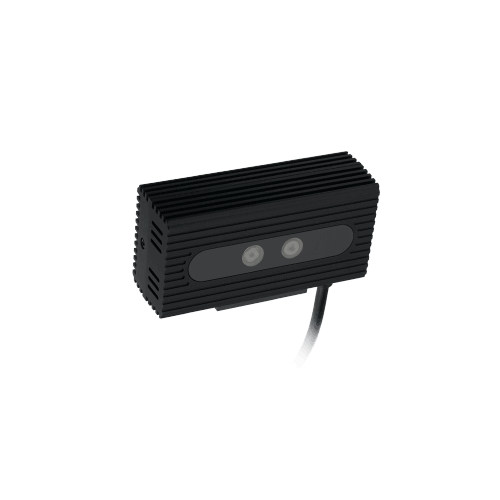

Dual-Lens Multimodal Standalone Reader for Face and Palm Recognition
Parameters
AMT-FAPVR-30
General Information


Processor
1.2GHZ Quad Core ARM Processor, 2.4 TOPS NPU

Memory
1 GB RAM and 512MB Flash

Camera
1.3 MP Infrared light camera; 2.0 MP visible light camera

Interface
USB 2.0

Communication
UVC and HID Protocol

Power Supply
DC 5.0V/2.0A

Power Consumption
< 2.5W (standby); < 3.5 W (operation)

Operating Temperature
-10°C ~ 55°C / 14°F ~ 131°F

Storage Temperature
-40°C ~ 85°C / -40°F ~ 185°F

Operating Humidity
15% ~ 95% RH

Dimension
AMT-FAPVR-30: 80.0L x 40.0W x 26.0H (mm)

Certifications
CE, FCC, RoHS

Sensor


Camara Type
Visible Light Camera
Infrared Light Camera
CMOS
1/2.8” HDR CMOS, 2.0MP
1/4” CMOS, 1.3MP
Dynamic Range
HDR mode 106dB
N/A
Optical Wavelength
440 nm ~ 650 nm
940 nm
Image Type
24-bit RGB true color
256 Grayscale Levels
Illumination Range
0.01 Lux to 50,000 Lux
0.01Lux to 20,000Lux
Exposure Mode
Auto Expose on Region of Interest (AE on ROI)
Auto Expose on Region of Interest (AE on ROI)
Image Resolution (Pixel)

Raw: 1080W * 1920H;

Output: 720W * 1280H

Raw: 1080W * 1280H;

Output: 720W * 1280H

Shutter Type
Rolling shutter
Global shutter
Frame of View (FOV)
Horizontal: 60°, Vertical 36°, Diagonal: 67°

Frame per second
15

Distortion Rate
≤ 0.5%

Built-In Algorithms


Biometric Type
Face
Palm
Recognition Distance
40cm – 120 cm
18cm - 40cm
Posture Adaptability (by Default)
Yaw ≤ 30°, Pitch ≤ 30°, Roll ≤45°
Yaw ≤ 45°, Pitch ≤ 30°, Roll ≤ 90°, Bend ≤ 30°
Accuracy
*TAR=99%@FAR=0.01%
*TAR=98.7%@FAR=0.01%
Recognition Mode
1:1, 1:N

Recognition Speed
< 100ms
< 140ms
Face Attribute
Age, Gender, Expression classification
N/A
Liveness Detection
Infrared-visible light mode; Infrared light mode
Infrared light mode
Face Mask Detection
Yes
N/A
Capacity On Module
30,000
5,000
