AMT-FAM-10
AMT-FAM-10

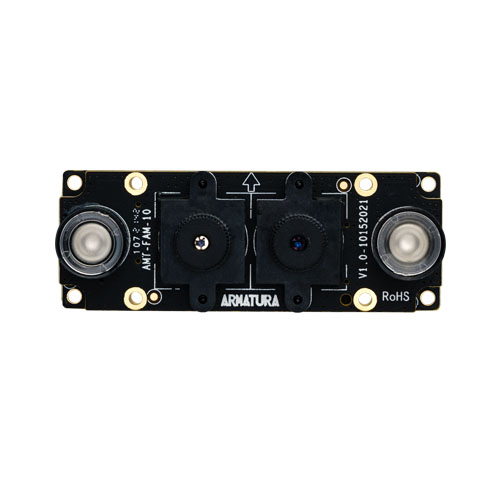

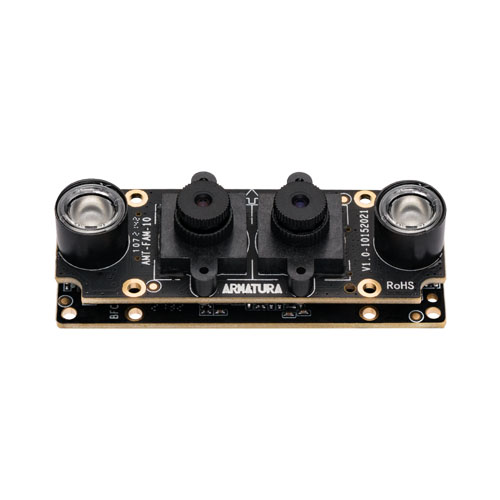

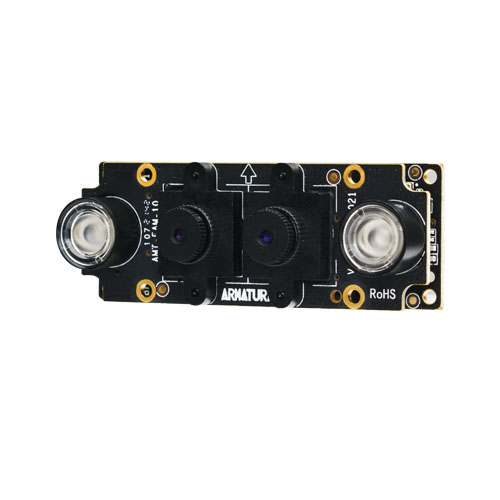

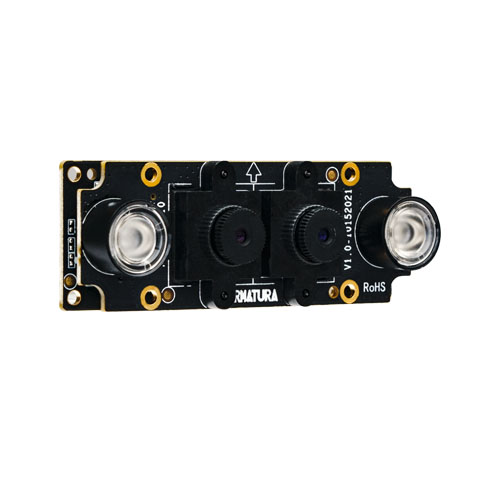

Dual-Lens Near-Infrared & Visible Light Face Module
AMT-FAM-10 is a dual-lens face module which captures the Near-Infrared (NIR) grayscale face images and true-color RGB face images for biometric recognition. Powered by Amatura FaceLite and LiveFace algorithms, the dual-lens module design ensures highest image quality for accurate identification while delivering highly secure liveness detection for anti-spoofing protection.
Parameters
AMT-FAM-10 & AMT-FAR-10
General Information


Interface
USB 2.0

Power Supply
DC 5.0V/ 400mA

Power Consumption
<1.1W (standby); <2.0W (operation)

Operating Temperature
-10°C ~ 45°C / 14°F ~ 113°F

Storage Temperature
-20°C to 80°C / -4°F ~ 176°F

Operating Humidity
0 ~ 90% RH

Module Dimensions
Module: 60.0(L) * 22.0(W) * 18.3(H) mm (±1mm)


Reader: 95.5(L) * 29.0(W) * 26.4(H) mm (±1mm)

SDK
Armatura FaceLite SDK 12.0

Certification
CE, FCC, RoHS, WHQL

Sensor


Camara Type
Visible Light Camera
Infrared Light Camera
CMOS
1 / 2.7” HDR

Dynamic Range
83dB

Optical Wavelength
440 nm ~ 650 nm
850 nm
Image Type
24-bit RGB true color
256 Grayscale Levels
Image Resolution
720W * 1280H
720W * 1280H
Default Output Format
MJPEG

Distortion Rate
≤1%

Field of View
Horizontal: 40°; Vertical: 65°; Diagonal: 74°

Maximal Frame Rate
12 fps

Recognition Distance
40cm ~ 90cm /16 inch ~ 35 inch
