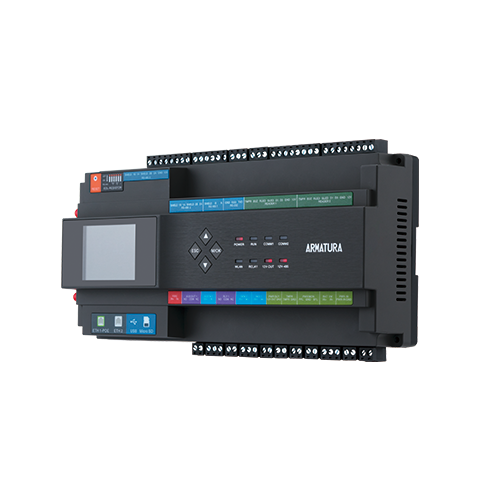

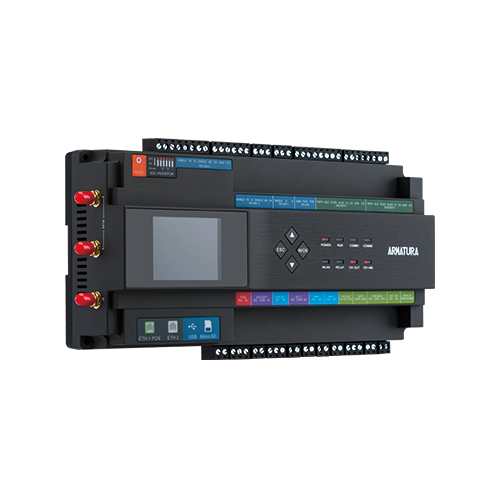

AHDU Series IP based Biometric Door Unit A&E Specifications Version 1.2 20240830
30.21MB
09 / 04 / 2024
Added Successfully
Primary Power | PoE 802.3at/af / 12 - 24 VDC ± 20%, 550 mA maximum (reader current not included) |
Primary Host Communication | Ethernet: 100Base-TX
256bit AES* symmetric encryption for Controller to Server and Inter-Controller communications |
Secondary Host Communication | BLE 5.2 (Optional) |
Third Host Communication | Wi-Fi IEEE 802.11ac 5GHz , or 2.4GHz/5GHz IEEE 802.11n
256bit AES* symmetric encryption for Controller to Server and Inter-Controller communications |
Ethernet network connection | Port 1:Ethernet: 100Base-TX
Port 2: Ethernet: 100Base-TX
(Configurable for Port Failover)
|
RS-485 connection | Port 1: Armatura RS-485 / OSDP V2.2
Port 2: Armatura RS-485 / OSDP V2.2
Port 3: Armatura RS-485 / OSDP V2.2
(Configurable for Port Redundancy dedicated on port 2 & 3) |
Number of Ports | 2*TCP/IP
3*RS-485
2*Wiegand
1*RS232 |
Inputs | 4-state supervision, resistor values (5% tolerance),
Normally open contact: use 1.2k, 2.2k. 4.7k or 10k/
Normally closed contact: use 1.2k, 2.2k. 4.7k or 10k/
Dedicated Panel Tamper IO Input*
Dedicated Microchip Control Fire Alarm IO Input & REX Input for catastrophic situation |
Outputs | 1 Relay,
1* Form-C with dry contacts |
Normally Open Contact Rating | 5A @ 30Vdc resistive |
Normally Closed Contact Rating | 5A @ 30Vdc resistive |
On-Board Monitor | Size: 2.4", Resolution: 320*240, TFT Monitor
Quickly view status of board, connected doors and for configuration information display |
On-Board Firmware | Dual Firmware Support, Access Control Mode (Standard) & Elevator Control Mode (Optional, Require Extra License for Activation) |
On-Board Webserver | WebSever for System Configuration and Management
Dashboard for Controller Status Mointoring,
Device Firmware Swapping (Access Control Mode / Elevator Control Mode),
Device Connection Status Monitoring & Configuration, Performanace Status,
Sever Primary Controller Setting,
Network Status Monitoring & Setting,
IP Access Filter, SSL / TLS Certificates Setting,
Access Log Export, Controller Reset, Debug Status Monitoring,
Operation Log Monitoring, User Management,
Date & Time Setting, Daylight Saving Time Setting,
NTP Sever Setting, General Status, Controler Information |
RFID Card Capacity | 400,000 (1:N) / 800,000 (1:1) |
Maximum RFID Card Number Length | Supports up to 512bits card number length |
Mobile Credential Capacity | 400,000 (1:N) (Bluetooth)
400,000 (1:N) (NFC@Armatura ID / HID employee badge in Apple Wallet)
400,000 (1:N) (Dynamic QR Code) |
Fingerprint Capacity | 50,000 (1:N) / 100,000 (1:1) |
Face Capacity | 5,000 (1:N) / 100,000 (1:1) |
Palm Capacity | 3,000 (1:N) / 5,000 (1:1) |
Transaction Buffer | 300,000 Events |
Access Level | 100,000 Levels |
On-Board Access Point Control | 1 Access point on board |
On-Board Reader Support | 3 (OSDP over RS-485)
or
1 (Wiegand) with on-board IO |
Maximum Access Points | 1 |
Maximum Readers | 2 |
Maximum Inputs | 384 (using Armatura AHEB-1602 / AHEB-1616) |
Maximum Outputs | 385 (using Armatura AHEB-1616) |
Maximum IO Board
(Access Control Mode) | 792pcs ( 24pcs direct connection through Armatura RS-485connection + 768 pcs through AHDU-1460 module through TCP/IP connection) |
Maximum IO Board
(Elevator Control Mode) | 8pcs*AHEB-1616 (direct connection through Armatura RS-485 connection) for Max.128 floors Management
16pcs*AHEB-0808 (direct connection through Armatura RS-485 connection) for Max.128 floors Management
24pcs*AHEB-1602(direct connection through Armatura RS-485 connection) for Max.48 floors Management |
