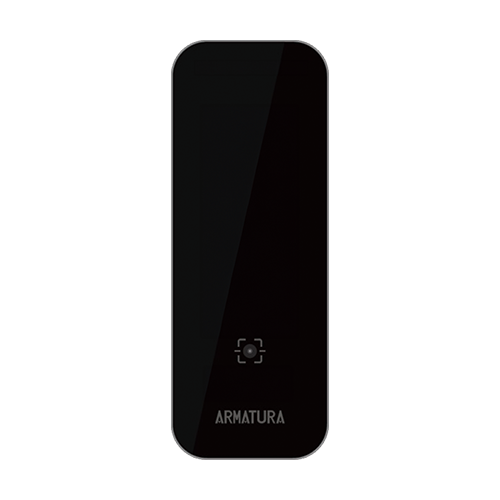

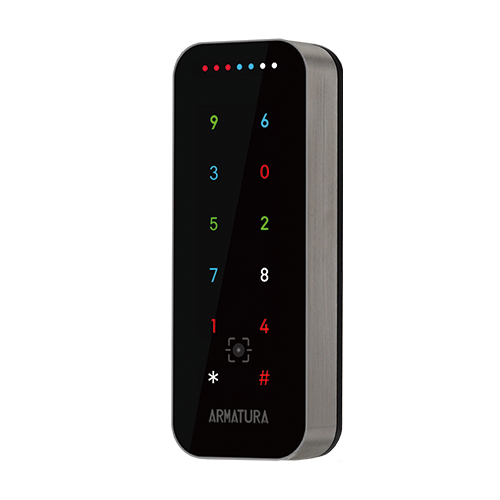

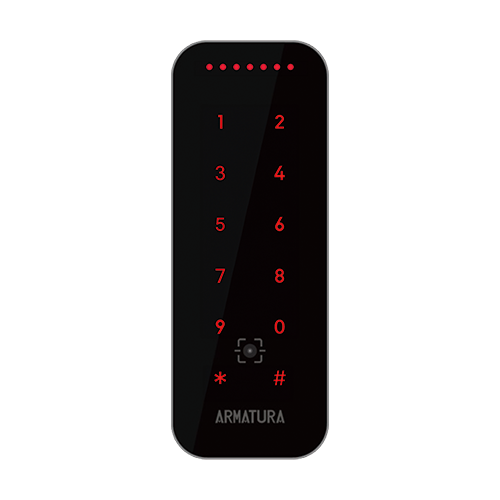

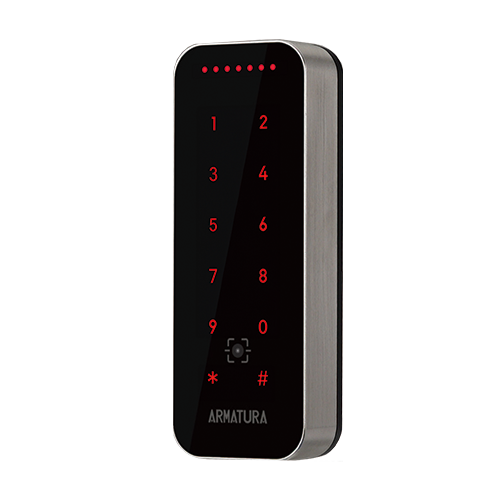

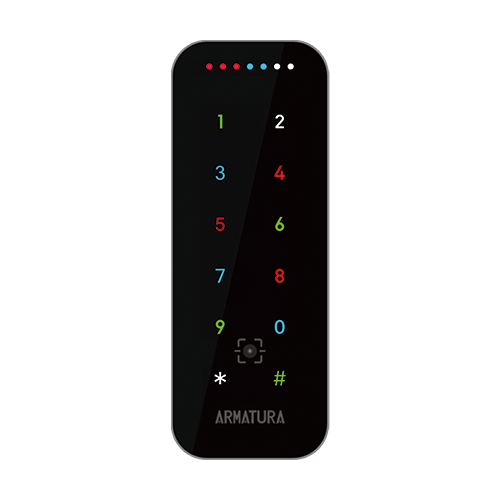

Vanguard Series - VG10CKQ

All-Weather Outdoor Multi-Tech Smart Reader


• Designed for Advanced Security
• Supports Over 100 RFID Credential Types
• Touch Keypad / QR Code Scanner


RFID
remote
QR-Code
LED
Keypad
IP66
IOSDP
IK07
Parameters
VG10CKQ
Internal Number
VG10CKQ
Operating Frequency / Standards
125 kHz
13.56 MHz: ISO14443 types A & B, ISO15693
2.4 GHz Bluetooth
Functions
RFID, Bluetooth and QR code
Keypad
Touch Keypad
QR Code Scanner
Supported
QR Code Scanning Pattern
Area image (640*480 pixel array)
QR Code Scan Angle
Horizontal: 68°/ Vertical: 51°
QR Code Capability

One-Dimensional Code:
Code 128, Code 39, Codabar, Interleaved 2 of 5, ITF-6, ITF-14,
ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,
Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
Two-Dimensional Code:
QR Code, Micro QR
QR Code Scanning Performance*

Narrow Width
9mil(QR)
15mil(QR)
20mil(QR)
6mil(Code128)
9mil(Code128)
15mil(Code128)
20mil(Code128)
Depth of Field

1.5''-2.5''(40mm-65mm)

0.3''-4.3''(10mm-110mm)

0.5''-4.5''(15mm-115mm)
1.7''-3.7''(45mm-95mm)
0.9''-5.1''(25mm-130mm)
0.9''-6.1''(25mm-155mm)
1.7''-5.5''(45mm-140mm)
Communications & Panel Connection
Wiegand
OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication)
Reading Distance

13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder)
Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
Data Protection

AES128 (Secured Communication between Reader & Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip
Visual Indicator
RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)
Audio Indicator

Internal buzzer with adjustable intensity
(Configurable By 'Armatura Connect' Mobile APP)
Power Requirement / Power Supply
9 VDC to 24 VDC
Operating Temperature
-4°F - 122°F /-20°C~50°C
Dimensions
4.78" W x 1.77" H x 0.96" D (121.5 x 45 x 24.5mm)
Tamper Switch
Magnetic tamper detection system
Certifications
CE, FCC, RoHs3.0, WEEE,UL294(Coming Soon)
Mounting
Suited for mullion-mount door installations or any flat surface mounting
Protection / Resistance

Weather & Dust Proof Protection Rating compliant with IP66
Reinforced Vandal-proof Structure IK07 certified
Remarks:
**Standard version provides "Read only"function. Customization is required for "Read & Write" function.
*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)
QR scanning performance was tested in a laboratory environment, and the luminance was recorded as 250 Lux.
