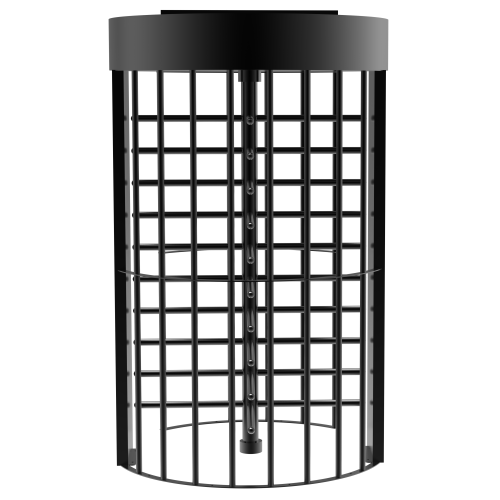

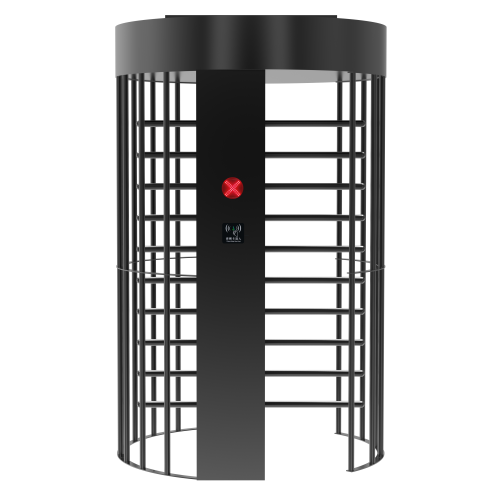

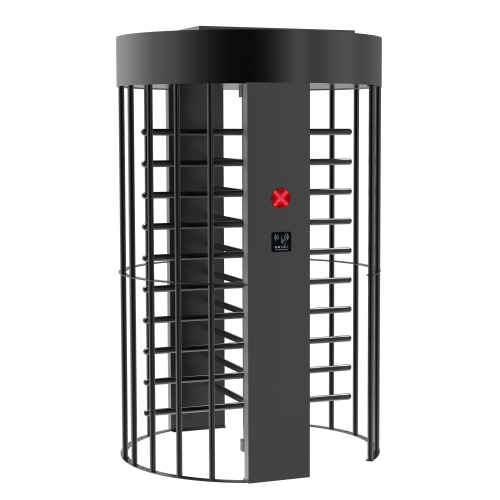

Full-Height Turnstile
Barrier Movement Type: Full-height rotating turnstile for controlled pedestrian access.
MCBF: 2 million cycles, ensuring long-term durability in high-usage environments.
Access Direction: Single or bi-directional operation.
Model | Aegis-3000
Aegis-3011 (with RFID)
Aegis-3022 (with Fingerprint and RFID) |
Audio Indicator | Internal Buzzer |
Visual Indicator | LED visual indicators integrated into the vertical column
Red cross: passage denied
Green arrow: passage allowed |
Lane Type | Single lane |
Lane Width | 21.65" (550 mm) |
Barrier Movement Type | Full-height rotating turnstile |
Movement Speed | Up to 30 people per minute |
Barrier Material | SUS201 (with black powder coating finishing) |
Cabinet Material | SUS201 (with black powder coating finishing) |
Lid Material | SUS201 (with black powder coating finishing) |
Motherboard Function | System configuration, entry log memory, safety logic |
Motherboard Communication | Fire alarm port (Relay)*1, RS485 port*1 |
Controller | Standard full height turnstile controller |
Credential Options | EP10, EP20 or 3rd-party readers |
Flow Rate | RFID: 30 passengers per minute
QR Code: 30 passengers per minute
Fingerprint: 20 passengers per minute |
Accessibility | 21.65" (550 mm) standard lane for pedestrians |
Power Supply | 100-240 VAC, 50/60 Hz |
Power Rating | 40 VA (Standby), 200 VA (Operation) |
Fire Signal | Input for voltage-free contact |
Noise Level | Less than 60 dB |
MTTR | Less than 60 minutes |
MCBF | 2 million cycles |
Weight | Gross Weight: 776 lbs (352 kg)
Net Weight: 551 lbs (250 kg) |
Dimension (L×W×H) | 59.06" × 59.06" × 94.49" (1500 × 1500 × 2400 mm) |
Dimensions with Packing | 58.27"×36.61"×84.67" (1480×930×2150mm) (Fence)
61.02"×13.39"×64.96" (1550×340×1650mm) (Top cabinet)
78.35"×35.83"×39.76" (1990×910×1010mm) (Rotating shaft) |
Operating Temperature | -18.4°F to 140°F (-28°C to 60°C) |
Operating Humidity | 20% to 95% RH (non-condensing) |
Certifications | Compliant with global safety and security standards |
Ingress Protection Rating | IPX4 |
Supported Software | Armatura One |
Safety Features | Power-off, Fail-safe, Emergency escape function |
Security Features | Anti-tailgating, Anti-intrusion, Auto-close mechanism |
Product Delivery | Pre-assembled for easy installation |
Application Environment | Indoor and Outdoor |
Site Preparation | Flat and level finished floor (optional base plate for unfinished floors) |
Security Level | High |
Emergency Mode | Barrier unlocks automatically during emergencies |
Packing Material | Wooden Box |
